Uses of Waterproof Cable Joint Kits in Industrial Electrical Systems

Moisture, environmental toxins, and harsh working conditions can always be a problem for industrial electrical systems. These problems can damage cable links and cause expensive downtime. For the maintenance of a stable electrical infrastructure in factories, power plants, and other industrial buildings, Waterproof Cable Joint Kit solutions have become indispensable. When used in harsh industrial settings, these specialized connection systems protect against water, rust, and mechanical stress and keep power flowing and signals sending without interruption.

Understanding Waterproof Cable Joint Kits in Industrial Applications

Core Components and Protection Features

For industrial electrical settings where regular connections would not work, waterproof cable joint kits are high-tech engineering solutions made just for those conditions. Multiple layers of protection are built into these systems, such as gel-filled insulation, sealing seals, and corrosion-resistant housings. These layers work together to make walls that keep moisture and contaminants out.

The basic structure of these safety systems is made up of special binding materials that stay intact even when exposed to chemicals, high temperatures, and low pressures that are common in industrial settings. Modern kits use advanced polymer materials and silicone-based seals that are flexible for a long time and don't break down when exposed to UV light, ozone, or industrial chemicals.

Types and Variations for Industrial Use

For different industrial uses, waterproof cable connections need different methods. This is why heat shrink and cold shrink technologies were created to meet specific operating needs. Heat shrink systems offer lasting bonding by activating protective materials at the molecular level and sticking them to cable surfaces. Alternatives to cold shrink seal right away without using heat, which makes them perfect for places where flames or high temperatures could be dangerous.

Advanced branch connector technology is shown by the T-GJFZ-70/16 model, which can handle main cables from 25 mm to 70 mm and branch links from 2.5 mm to 16 mm. This adaptability meets the various cable size needs found in industrial settings, ranging from heavy-duty power distribution to control signal splitting.

Performance Advantages Over Standard Connections

A comparison study shows that using waterproof joint systems, like the Waterproof Cable Joint Kit, instead of regular electrical links in industrial settings leads to big performance gains. When standard connections are exposed to wetness, they usually break down faster, which causes more resistance, heat, and eventually failure. Waterproof alternatives keep the electricity performance stable and extend service life by protecting the surroundings in a wide range of ways.

Durability benefits go beyond just keeping out water; they also include resistance to mechanical stress, temperature cycles, and chemical exposure that are common in industrial settings. These better features directly lead to less maintenance needs, fewer failures that come up out of the blue, and higher total system stability for important business processes.

Installation and Application Guide for Industrial Use

Preparation and Safety Protocols

To install waterproof cable joint systems professionally, you need to plan ahead and follow set safety rules that keep people and tools safe. The first step is to carefully inspect the spot to find any possible dangers, environmental factors, and entry needs that might affect the installation process.

To properly prepare a cable, the covering must be carefully peeled off to reveal the conductor surfaces without hurting the wire strands below. To get the best sealing performance and keep the electrical integrity, the visible length must match the kit's specs. Cleaning the surface gets rid of dirt and other things that could make it harder for binding materials and cable parts to stick together.

Step-by-Step Installation Process

The steps for fitting are done in a way that makes sure the sealing and wiring work are reliable. Before making electrical connections, the first step is to place the waterproof covering parts along the cable path. This way, no parts need to be removed or cables need to be manipulated later.

Compression or mechanical joining methods are used to make low-resistance paths between wires in electrical links. With the T-GJFZ-70/16 method, you don't have to cut the main cable; instead, you can make branch links anywhere along the cable run. This feature makes installations a lot easier and gives you the freedom to adapt to changing operating needs.

During sealing processes, gel-filled insulation materials are pushed around the edges of the conductors to close off any holes in the insulation and stop moisture from getting in. The gel mixture has self-healing qualities that keep the seal intact even when it's hit by small amounts of heat or physical damage.

Quality Assurance and Testing

To make sure an installation is correct, it needs to be thoroughly tested to make sure it works properly electrically and protects the environment. Insulation resistance tests make sure that the connections between the wires and ground lines are properly isolated, and continuity tests make sure that the electrical connections are strong throughout the joint assembly.

Environmental testing exposes finished works to conditions like changing temperatures, wetness, and mechanical stress that are similar to what they would be used for in real life. These validation steps find possible weak spots in equipment before it is put into service. This keeps it from breaking down in the field, which could stop industry activities.

Selecting the Right Waterproof Cable Joint Kit for Industrial Environments

Critical Evaluation Criteria

When buying waterproof joint systems for industrial use, procurement workers need to think about a number of technical factors. Different industrial settings have very different needs when it comes to mechanical durability. For example, heavy manufacturing needs higher earthquake resistance than control room setups.

When working with high-current wires or high ambient temperatures, thermal performance traits become very important. The chosen waterproof cable joint kit must keep its binding strength and electrical performance over the expected temperature range, taking into account how cable materials expand and contract with temperature changes.

Another important thing to think about is how well the cables will work together. This is because different wire materials, insulation types, and voltage ratings need different joint designs. With its wide size range compatibility, the T-GJFZ-70/16 model can handle the wide range of cable specs that are popular in industry settings. This cuts down on the need for inventory and makes buying easier.

Brand Comparison and Reliability Assessment

Leading makers like 3M, Panduit, and HellermannTyton have clear benefits when it comes to building materials, manufacturing quality, and expert support. Each brand is better at different things when it comes to industrial uses. Some brands are better at working in harsh environments, while others focus on making things easier to install or saving money.

Reliability records are very helpful for figuring out what kind of long-term success to expect in real-world working situations. Industry feedback and case study data show how different goods work in different situations. This helps buying teams make smart choices based on real-world experience instead of just theoretical specs.

Support and warranty plans after the sale have a big effect on the total cost of ownership for industrial systems. Full technical support, training programs, and quick guarantee service lower operating risks and make sure the product works at its best throughout its lifetime.

Bulk Purchasing and Supply Chain Advantages

Large industrial companies that run multiple sites or big projects can benefit a lot from buying in bulk. When compared to individual orders, bulk buying deals usually save between 15% and 25% on costs while making sure that products are always available for maintenance and growth needs.

Streamlined operations make it easier to manage things and make sure that deliveries happen on time and on plan with projects. When standard goods can't meet the needs of an application, having a relationship with a seller gives you priority access to technical knowledge and unique solutions.

Case Studies: Real-World Industrial Uses of Waterproof Cable Joint Kits

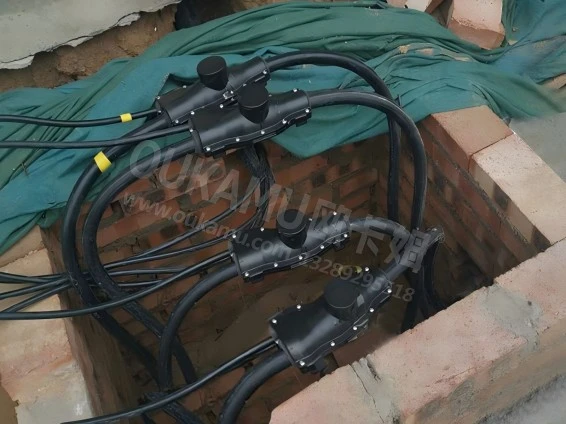

Underground Utility Networks

A big city's water treatment plant put waterproof joint systems in all of their underground cable networks that serve important pump stations and treatment equipment. There were more than 200 connection places in the system that were exposed to groundwater, chemicals in the soil, and mechanical stress from the ground shifting.

For this job, IP68-rated waterproof cable joint kits were used because they were made to work in underground areas and keep water out when hydrostatic pressure is high. After three years of use, a check showed that there were no signs of water getting in or electricity problems. This shows that choosing the right waterproof joint for underground industrial uses works.

Automotive Manufacturing Environment

A car assembly plant needed reliable cable links for robotic welding stations that worked in areas with metal particles, coolant mist, and lots of cleaning. Standard electrical links broke down quickly, which stopped production and made upkeep more expensive.

Using gel-filled waterproof joint systems got rid of problems caused by water and made them resistant to cleaning chemicals and car fluids. The small joint design worked with artificial work cells that didn't have a lot of room while still protecting the environment completely. After the change to waterproof connection technology, production efficiency went up by 12%.

Offshore Industrial Platform

Electrical cables on an offshore oil station had to be weatherproof so they could survive salt spray, high winds, and temperature changes from -20°C to +60°C. In the past, connection breakdowns were common because of the harsh sea environment, which raised safety issues and caused problems with operations.

Extreme weather didn't affect the electrical performance because the marine-grade waterproof joints kept them completely protected against rust. Over 150 connecting points were set up between the power distribution and control systems. During the first two years of operation, there were no weather-related breakdowns.

Future Trends and Innovations in Waterproof Cable Joint Technology

Advanced Materials Development

New polymer technologies offer better performance, such as greater chemical protection, greater flexibility, and a wider range of temperatures. New composite materials have more than one protective property all in one single system. This makes fitting easier and improves long-term durability.

Self-healing features are added to nanotechnology applications that fix small damage to protection barriers automatically. With these new ideas, industrial installations in harsh environments might have much longer work lives and need less upkeep.

Smart Monitoring Integration

Sensor-enabled joint systems are the next step forward in waterproof connection technology. They let you check the surroundings, the electrical performance, and the stability of the seal in real time. These smart systems allow for planned repair methods that stop problems before they affect activities.

Wireless communication lets you keep an eye on connection points that are in dangerous or hard-to-reach places from afar, which increases safety and lowers the cost of inspections. By looking at performance trends, data analytics can find the best repair plans and make systems more reliable.

Strategic Procurement Considerations

Forward-thinking buying strategies should plan for new technologies while still being able to work with the infrastructure that is already in place. Modular designs that can be upgraded in the future give you options without having to update the whole system.

Spending money on new waterproof joint technology pays off in a concrete way: less downtime, lower upkeep costs, and better safety performance. Companies that use these technologies intentionally gain a competitive edge by making their operations more reliable and lowering their total cost of ownership.

Conclusion

Waterproof cable joint kits are now necessary parts for keeping industrial electrical systems running smoothly in harsh conditions. The complete defense these systems offer against water, chemicals, and mechanical stress directly leads to higher operating reliability and lower upkeep costs. It's even more important to have strong, waterproof links in industries that are becoming more automatic and running on constant electricity. Investing in good waterproof joint technology pays off by increasing safety in a wide range of workplace settings, extending the life of equipment, and lowering downtime.

FAQ

Q1: What is the expected lifespan of waterproof cable joint kits in industrial environments?

A: If you install and take care of a good waterproof cable joint kit the right way, it should last 15 to 25 years in normal industry settings. Extreme temperatures, chemical contact, or mechanical stress can shorten this product's life to 10 to 15 years. On the other hand, controlled indoor settings can make it last longer than 25 years.

Q2: Can waterproof joint kits be used across different industrial sectors?

A: Modern waterproof joint systems are very flexible and can be used in a wide range of situations. For example, many designs are good for underground services, making cars, handling chemicals, and marine uses. But certain environmental needs, like explosion-proof grades or the ability to withstand high temperatures, might mean that different versions are needed for different industry sectors.

Q3: How do heat shrink systems differ from waterproof cable joint kits?

A: Through thermal action, heat shrink tubing provides insulation and basic environmental protection. Waterproof cable joint kits, on the other hand, offer complete closing systems with multiple protective barriers. Most waterproof kits come with gel-filled tanks, compression seals, and housings that won't rust. These protect against wetness better than heat shrink alone.

Partner with Oukamu for Industrial Waterproof Cable Solutions

When it comes to tough industrial uses, Oukamu specializes in high-tech waterproof cable joint options. With IP68 waterproofing and gel-filled insulation technology, our T-GJFZ-70/16 branch connection system gives you more options than any other. As a top manufacturer of Waterproof Cable Joint Kits with more than 20 years of experience, we offer full professional support and flexible bulk purchasing choices that are tailored to the needs of your project. Get in touch with our engineering team at info@okmbranchcable.com to talk about your unique needs and get a price for your industrial electrical infrastructure projects.
