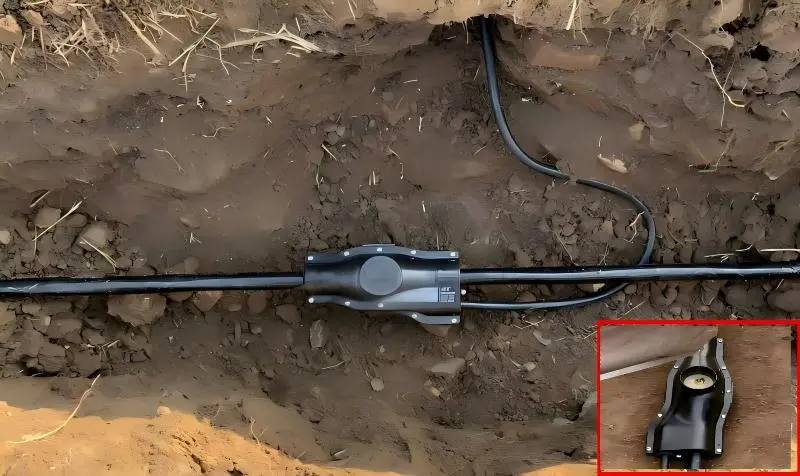

When choosing materials for underground electrical installations, the difference between Cable Joint Resin and gel compounds has a big effect on how reliable the system is and how much it costs to maintain. Cable Joint Resin offers better mechanical strength and long-term stability, making it ideal for fixed installs where longevity matters most. Gel solutions provide easy installation and reworkability, perfect for temporary links or uses needing frequent changes. Understanding these basic differences helps electricity builders, wholesalers, and project managers make informed choices based on specific underground application needs.
Understanding Cable Joint Protection Materials
Underground electrical systems demand strong security against wetness, soil chemicals, and mechanical stress. Cable Joint Resin is a long-lasting solution made of thermosetting polymers that harden into rigid, watertight walls around electrical connections.
These resin sealing systems usually consist of epoxy resin mixtures mixed with hardeners and fillers. The bonding process forms permanent chemical bonds, resulting in great insulating strength and mechanical safety.
Gel-based systems utilize silicone or polyurethane compounds that stay flexible after fitting. It's not solid walls that seal these materials; instead, they use conformable contact, which lets heat expand and cables move slightly.
According to IEEE standards, resin systems can reach dielectric strengths of more than 15 kV/mm, while gel compounds usually only reach 8–12 kV/mm. Both materials meet industry standards, but performance traits vary greatly.
If you need stable, high-strength safety for important underground infrastructure, then resin sealing methods prove more suitable for long-term stability.
Performance Characteristics and Durability
Mechanical strength represents a crucial differentiator between these protection methods. Cable Joint Resin systems withstand compressive forces up to 80 MPa, making them resistant to soil settlement and excavation damage.
Laboratory testing demonstrates that cured resin joints maintain structural integrity after 1000 freeze-thaw cycles, while gel systems may experience some degradation under extreme temperature variations.
Moisture resistance varies significantly between materials. Resin casting creates impermeable barriers with water absorption rates below 0.1%, ensuring long-term insulation properties remain stable.
Gel compounds rely on adhesion and flexibility for moisture exclusion. While effective initially, aging and thermal cycling can create pathways for water ingress over time.
UV resistance becomes important for partially exposed installations. Epoxy resin formulations include stabilizers providing decades of protection, while some gel materials require additional UV barriers.
If you need maximum durability in harsh underground environments, then resin-based protection systems offer superior long-term performance characteristics.
Installation Process and Labor Requirements
Installation complexity differs substantially between resin and gel systems. Cable Joint Resin requires precise mixing ratios, proper surface preparation, and controlled curing conditions for optimal results.
Typical resin installation involves these steps:
1. Clean and prepare cable surfaces
2. Apply primer if specified
3. Mix resin components according to manufacturer specifications
4. Pour or inject resin into molds or forms
5. Allow complete curing (usually 2-24 hours)
Gel application proves more straightforward, requiring minimal surface preparation and no mixing procedures. Installation teams can apply gel compounds directly from packaging, reducing potential errors.
Working time constraints favor gel systems for complex installations. Resin compounds have limited pot life (typically 15-45 minutes), requiring efficient work practices and potentially multiple batches for large joints.
Temperature sensitivity affects both materials differently. Resin curing slows significantly below 10°C, while gel compounds remain workable across wider temperature ranges.
If you need flexible installation scheduling and simplified procedures, then gel-based systems provide greater operational convenience for field crews.
Cost Analysis and Economic Considerations
Initial material costs show gel compounds typically costing 20-30% less than equivalent resin systems. However, total project economics include labor, equipment, and long-term maintenance factors.
Resin encapsulation requires specialized mixing equipment, molds, and skilled technicians familiar with thermosetting processes. These requirements increase initial project costs but deliver long-term value through reduced maintenance needs.
Labor efficiency varies by application complexity. Simple joints may favor gel systems for rapid installation, while complex multi-cable arrangements benefit from resin's superior void-filling capabilities.
Lifecycle cost analysis reveals significant differences over 20-year periods. Resin systems typically require minimal maintenance, while gel compounds may need periodic inspection and replacement in demanding environments.
Inventory management considerations affect distributor and contractor operations. Resin systems have extended shelf life (2-3 years when properly stored), while some gel products require temperature-controlled storage and shorter rotation cycles.
If you need predictable long-term costs and minimal maintenance expenses, then resin-based solutions offer better economic value despite higher initial investment.
Environmental Impact and Sustainability
Environmental performance encompasses manufacturing impact, service life, and end-of-life disposal considerations. Resin casting systems typically use petrochemical feedstocks but create durable installations lasting decades.
Gel compounds often incorporate more renewable content and produce lower manufacturing emissions. However, shorter service life may result in higher cumulative environmental impact through replacement cycles.
Thermal stability affects both environmental performance and safety. Quality resin formulations maintain properties at temperatures up to 130°C, while gel systems may soften or migrate at elevated temperatures.
Chemical resistance protects against soil contaminants and groundwater chemicals. Epoxy resin demonstrates excellent resistance to acids, alkalis, and organic solvents commonly found in industrial areas.
Disposal and recycling options remain limited for both material types. However, longer service life reduces frequency of disposal events for resin-protected installations.
If you need environmentally responsible solutions with minimal replacement frequency, then high-quality Cable Joint Resin systems provide better sustainability profiles.
Application-Specific Recommendations
Critical infrastructure applications including substations, industrial facilities, and transportation systems benefit from resin encapsulation's permanent protection and mechanical strength.
Temporary installations, construction sites, and applications requiring future modifications favor gel compounds for their reworkability and ease of removal.
High-voltage applications (above 15 kV) typically specify resin systems for superior dielectric strength and long-term insulation reliability. Medium and low-voltage installations may use either technology based on other factors.
Corrosive soil conditions, high water tables, and aggressive chemical environments strongly favor resin protection due to superior chemical resistance and permanent sealing characteristics.
Joint protection requirements vary by cable type and connection complexity. Multi-conductor splices with numerous individual connections benefit from resin's complete void-filling capability.
If you need versatile protection suitable for various underground scenarios, then comprehensive resin systems provide greater application flexibility and reliability assurance.
Conclusion
Selecting between Cable Joint Resin and gel systems requires careful consideration of application requirements, environmental conditions, and long-term performance expectations. Resin encapsulation provides superior mechanical strength, dielectric properties, and durability for permanent underground installations. Gel compounds offer installation flexibility and reworkability benefits for temporary or frequently modified connections. Cost analysis should include lifecycle factors beyond initial material prices. Environmental conditions, voltage levels, and maintenance accessibility significantly influence optimal technology selection. Understanding these material characteristics enables informed decisions supporting reliable underground electrical infrastructure performance.
Oukamu Cable Joint Resin Solutions - Your Trusted Manufacturing Partner
Xi'an Oukamu Electric Co., Ltd. delivers cutting-edge Cable Joint Resin technology backed by 17 years of specialized experience in cable connection solutions. Our comprehensive product range addresses diverse underground application requirements while maintaining competitive pricing and reliable supply chains.
Our Cable Joint Resin systems offer distinctive advantages for electrical distributors and contractors:
- Superior Material Properties: Advanced epoxy resin formulations providing exceptional dielectric strength exceeding 18 kV/mm and mechanical strength surpassing industry standards
- Flexible Installation Options: On-site branch connection capability allowing precise positioning adjustments without pre-fabrication constraints
- Integrated Design Excellence: Complete component integration ensuring reliable waterproof seal performance and visual appeal in demanding environments
- Cost-Effective Operations: Reduced cable waste, minimized installation labor, and lower transportation costs through modular trunk cable systems
- Enhanced Durability Features: Comprehensive protection including flame retardancy, UV resistance, and anti-electrochemical corrosion properties
- Adaptable Installation Methods: Compact structure enabling both open installation and confined bridge applications
- Quality Assurance Programs: Rigorous testing protocols ensuring consistent performance and timely technical support
- Inventory Management Benefits: Extended shelf life and standardized specifications reducing storage complexity
- Project Flexibility Advantages: Real-time branch position adjustment capability accommodating design changes without material waste
- Environmental Resistance: Proven performance in high-temperature, high-humidity, and corrosive soil conditions
Our innovative cable branch technology eliminates pre-fabrication limitations while delivering superior joint protection through advanced polymer compound formulations. Electrical contractors benefit from simplified threading processes, reduced bending radius concerns, and enhanced damage resistance during transportation.
As a leading Cable Joint Resin manufacturer, Oukamu supports distributor success through comprehensive product training, technical documentation, and responsive customer service. Our solutions meet diverse procurement scenarios from new product launches to customized specifications for special applications.
Whether you manage appliance stores, engineering supply operations, or e-commerce platforms, our Cable Joint Resin products enhance your competitive advantage through proven reliability and innovative features. Ready to explore how our cable connection solutions can optimize your project outcomes and customer satisfaction? Contact us at info@okmbranchcable.com to discuss your specific requirements and discover why leading distributors choose Oukamu for underground electrical applications.
