Cable Jointing Resin
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 25~70mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Cable Jointing Resin: Professional Solutions for Low-Voltage Power Distribution
Xi'an OUKAMU Power Technology delivers industrial-grade Cable Jointing Resin systems backed by over 150 national invention patents and 20 years of cable connection expertise. Our ZR-JFZ-70/35 branch joint system supports main cables from 25~70mm² and branch cables from 2.5~35mm² at rated voltage 0.6/1kV. With proven performance across 10,000+ major projects including Hong Kong–Zhuhai–Macao Bridge and multiple metro systems, our resin joint kits eliminate the need to cut main cables, saving 2-3 meters of cable per installation while reducing labor costs by 40% and installation time significantly.
What Makes Our Cable Jointing Resin Different?
The technology of our product is a breakthrough in the area of T-connection systems for low-voltage electrical networks. Unlike standard jointing procedures that need the cables to be cut and pre-measured, OUKAMU’s solution maintains the integrity of the main cable during installation.
The two part polyurethane resin encapsulation provides excellent electrical insulation and mechanical protection. Your installation crew can quickly make on-site adjustments to branch placements for customisation. This versatility is essential for retrofit projects and difficult subsurface locations.
Our system conforms with the international safety standards of GB/T 14048.7-2016. The integrated design is suitable for PVC, XLPE, polyethylene and paper insulated cables, single core and multi-core.
Three Protection Levels for Every Application
Flame Retardant Protection
Our flame retardant solution is well suited for industrial and commercial buildings where normal indoor circumstances will allow for safe operation. The sealed design protects the main cable’s current-carrying capability and complies with fire safety rules for factories, residential buildings and public facilities.
IP68 Grade Waterproof Protection
We have a waterproof version for cable wells and direct burial applications that provides full moisture barrier protection. The complete potting method minimises water infiltration and leakage current, and guarantees steady performance when installed underground. This approach is suitable for underground railway system, tunnel lighting and outdoor distribution network.
Fire Resistant Protection
Our premium fire resistant system provides the highest level of safety for vital infrastructures. The upgraded formula ensures circuit integrity in the case of fire, meeting the rigorous criteria for hospitals, data centers and emergency power systems.
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors) (mm²)
|
Technical Parameters
|
||||
|
Main Cable
(2~5 Cores)
|
Branch Cable
(2~5 Cores)
|
Rated Voltage(kV)
|
Rated Current(A)
|

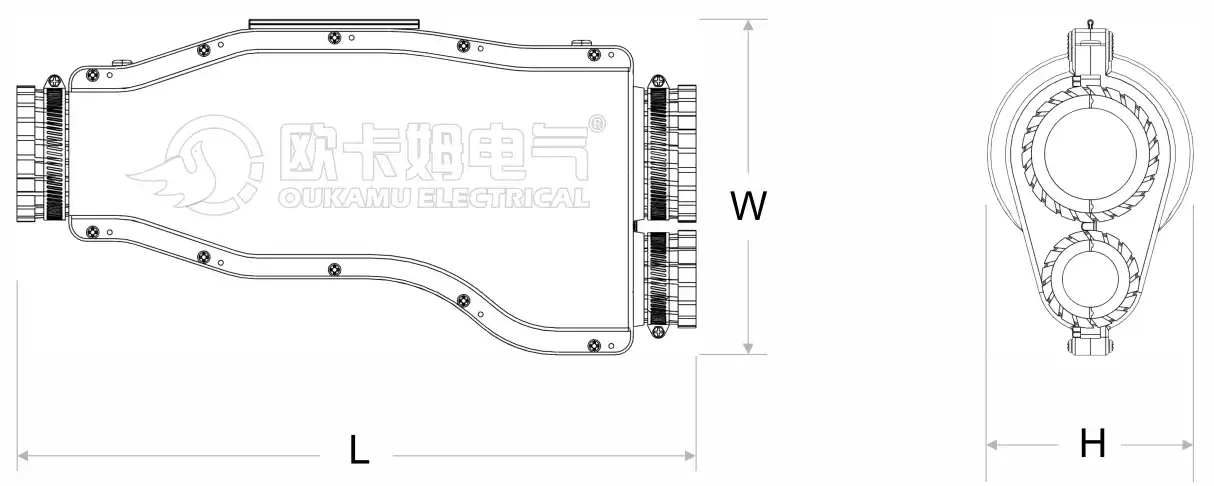

Size
L*W*H(mm)
|
||
|
Copper Core
|
Aluminum Alloy Core
|
|||||
|
ZR-JFZ-16/10
|
4~16
|
1.5~10
|
0.6/1
|
72
|
/
|
260*105*65
|
|
ZR-JFZ-35/16
|
10~35
|
2.5~16
|
0.6/1
|
95
|
76
|
325*140*75
|
|
ZR-JFZ-70/35
|
25~70
|
2.5~35
|
0.6/1
|
150
|
120
|
365*170*105
|
|
ZR-JFZ-95/35
|
35~95
|
2.5~35
|
0.6/1
|
150
|
120
|
375*175*110
|
|
ZR-JFZ-120/35
|
50~120
|
2.5~35
|
0.6/1
|
150
|
120
|
380*180*115
|
|
ZR-JFZ-150/50
|
50~150
|
6~50
|
0.6/1
|
190
|
152
|
425*185*115
|
|
ZR-JFZ-185/35
|
70~185
|
2.5~35
|
0.6/1
|
150
|
120
|
430*190*120
|
|
ZR-JFZ-95/70
|
35~95
|
16~70
|
0.6/1
|
240
|
190
|
440*190*120
|
|
ZR-JFZ-240/70
|
95~240
|
6~70
|
0.6/1
|
240
|
190
|
460*210*130
|
|
ZR-JFZ-185/95
|
70~185
|
10~95
|
0.6/1
|
290
|
230
|
515*230*140
|
|
ZR-JFZ-300/95
|
120~300
|
10~95
|
0.6/1
|
290
|
230
|
515*230*140
|
|
ZR-JFZ-240/120
|
95~240
|
50~120
|
0.6/1
|
340
|
280
|
520*240*145
|
Installation Steps

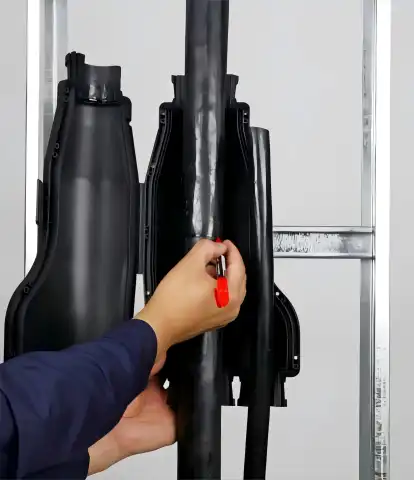

2.Determine installation location

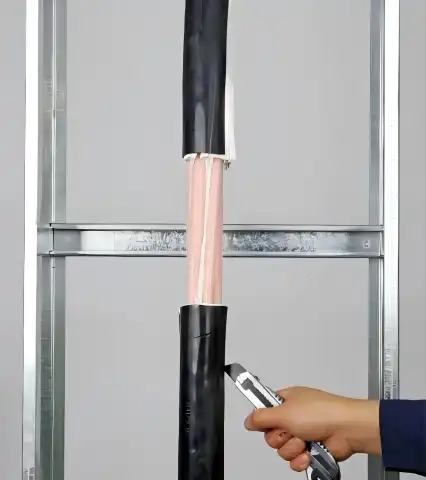

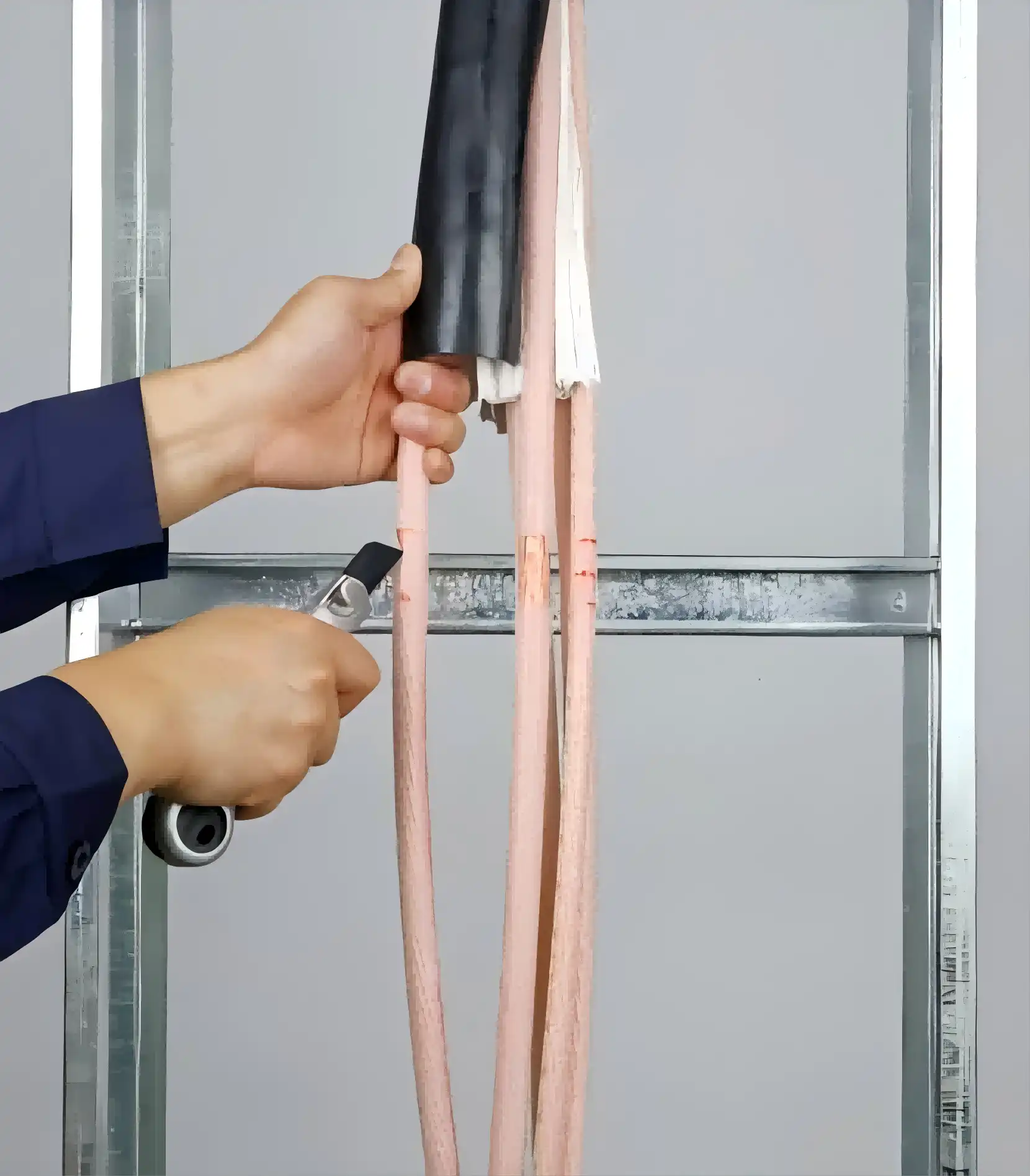

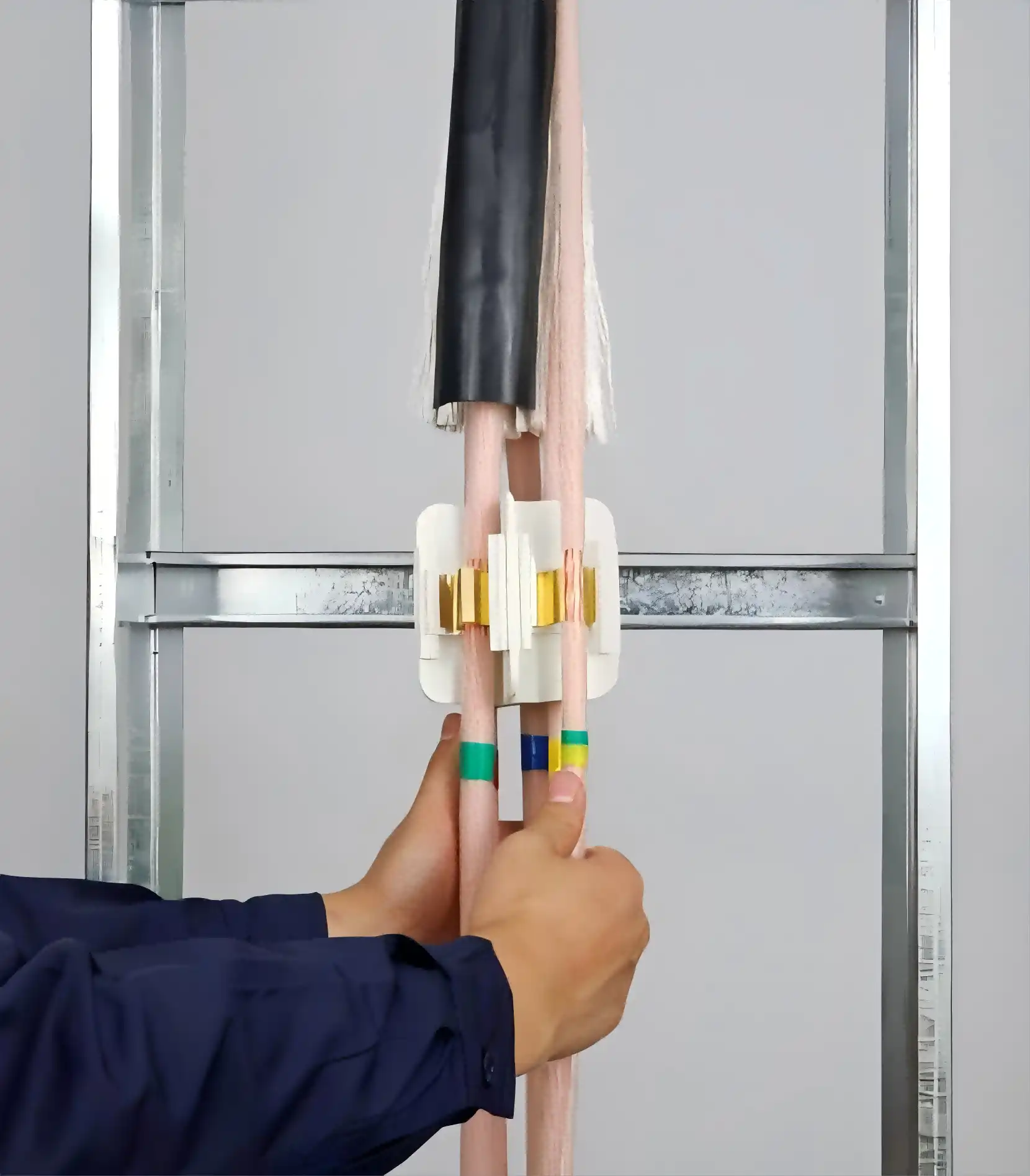

4.Strip main cable insulation

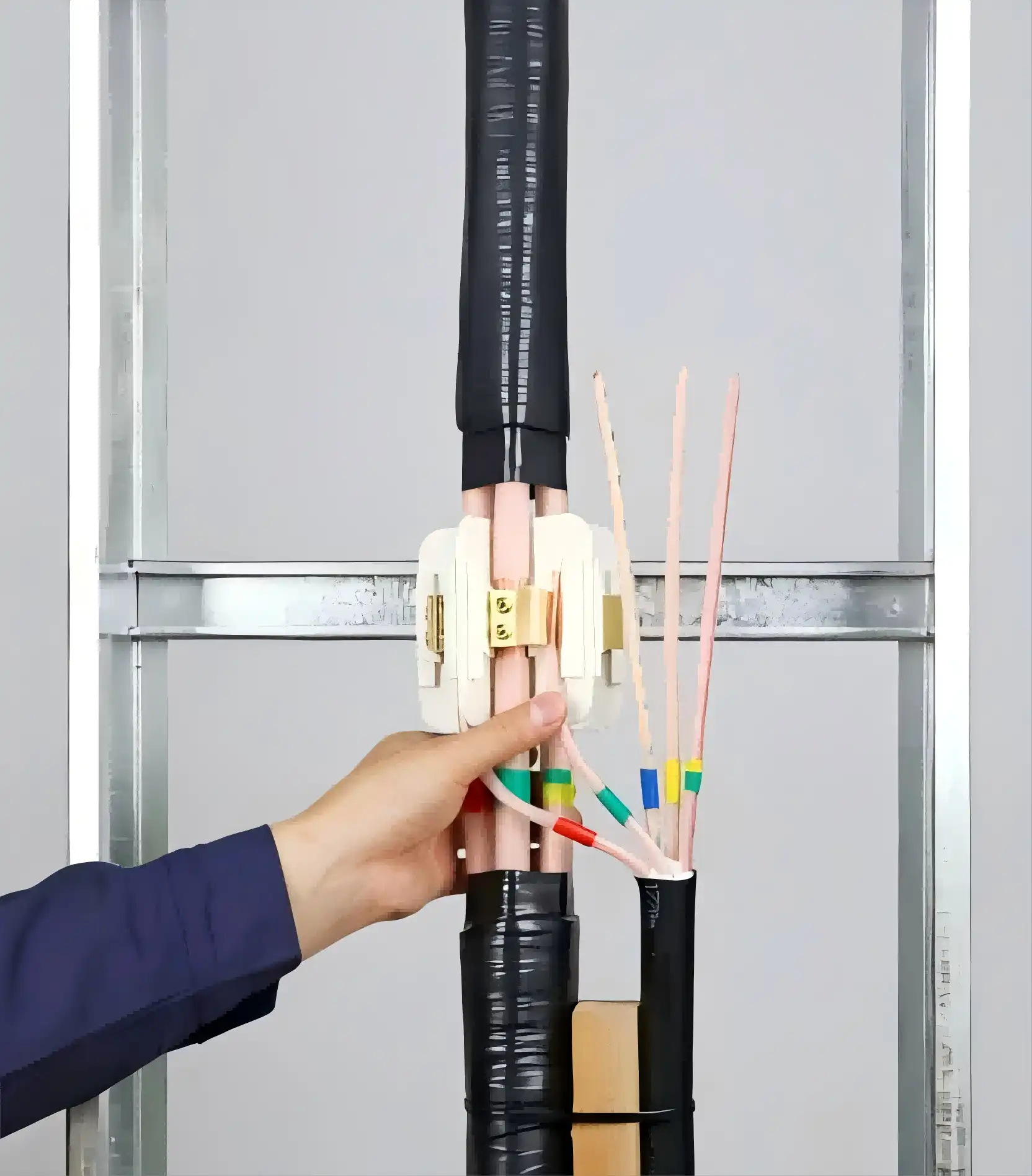

5.Installation of branch cable body
Installation Advantages You'll Appreciate
Your installation becomes simpler with our snap-to-close housing design. No specialized tools or pre-heating equipment required. The transparent polycarbonate shell lets you verify proper connection before final sealing.
The resin cures within 24 hours for safe handling, reaching full mechanical strength in 72 hours. You'll appreciate the space savings—our compact design reduces installation footprint by 30% compared to traditional junction boxes.
Main cable remains uncut, preserving its original load capacity and mechanical strength. This uncut design reduces potential failure points and extends overall system lifespan. Your maintenance costs drop significantly with this maintenance-free solution.
Wide Application Range
Our branch joint systems with Cable Jointing Resin serve diverse electrical distribution needs. They perform reliably in metro construction, highway lighting systems, commercial complexes, and residential buildings. The resin encapsulation protects against moisture, dust, and mechanical stress in challenging environments.
Tunnel projects benefit from our fire-resistant variants, while underground parking facilities rely on waterproof protection. Industrial facilities choose flame-retardant options for production areas and warehouse distribution networks.
Real-World Performance Data
OUKAMU systems operate successfully in projects from -40°C harsh northern climates to +45°C southern regions. Our installations at Nantong Metro Line 2 have maintained zero failure rates across 3+ years of operation. The Zhengzhou–Wanzhou High-Speed Railway project utilized over 2,000 branch joints without a single maintenance call.
Cost analysis from Shaanxi Olympic Sports Center installation showed 35% total project savings compared to traditional cut-and-splice methods. Material waste dropped to nearly zero, and installation time per joint decreased from 45 minutes to 15 minutes.
Why Choose OUKAMU?
With 150+ invention patents and two decades of specialization, we bring proven cable connection expertise to your projects. Our technology has protected power distribution in some of Asia's most demanding infrastructure applications.
Every joint kit undergoes rigorous quality testing before shipping. We stand behind our products with comprehensive technical support and rapid response times. Your project deserves connection solutions engineered for decades of reliable service.
FAQ
Q: How long does the product take to cure?
A: The resin reaches touchable hardness within 24 hours under normal conditions (20-25°C). Full cure for load-bearing applications occurs at 72 hours. In colder environments, curing may extend slightly. The joint can remain workable for 15-20 minutes after mixing, giving your team adequate working time.
Q: Can I use this system on armored SWA cables?
A: Yes, our branch joint kits accommodate 2, 3, 4, and 5-core SWA armored cables from 10mm² through 300mm². The housing design provides ample working room for armored cable preparation. You'll strip armor at the branch point while maintaining main cable armor continuity.
Q: Do I need to cut the main cable for branch connections?
A: No cutting required. Our patented connector design clamps onto the main cable conductor through a controlled penetration method. This preserves main cable integrity and eliminates the risks associated with cable splicing. Your main circuit remains fully rated after branch installation.
Q: What makes resin jointing better than heat-shrink methods?
A: Resin encapsulation provides superior moisture sealing and mechanical protection compared to heat-shrink sleeves. You won't need heat guns or torches on-site, improving safety in confined spaces. The potted joint withstands higher mechanical stress and offers better long-term stability in underground applications.
Q: Is special training needed for installation?
A: Basic electrical qualification is sufficient. Our system eliminates complex splicing and specialized tooling. Standard installation takes 15 minutes per joint after brief familiarization. We provide installation guides and technical support to ensure your team's success.
Q: Can these joints be reused if I need to modify the circuit?
A: Our advanced design allows disassembly for circuit modifications. While the resin itself is single-use, the housing and connectors can accommodate reconfiguration. For temporary installations or pilot projects, this reusability offers significant value.
Get Your Custom Solution Today
Contact our technical team at info@okmbranchcable.com for product specifications, pricing, and application support. We'll help you select the optimal Cable Jointing Resin system for your requirements.
