Y-branch Cable Joint
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Y-Branch Cable Joint Introduction
Welcome to Xi'an OUKAMU, where innovation meets practicality. Our Y-Branch Cable Joint is a groundbreaking solution for cable branch connections, designed to simplify and enhance the way you manage your electrical systems. Invented in 2015, this integrated T-connector (integrated brancher) is a new type of cable branch connection product that offers unparalleled convenience, safety, and reliability.
It is perfect for connecting multi-core main cables and multi-core branch cables at construction sites. It ensures that your electrical installations are not only efficient but also aesthetically pleasing. Whether you're working on low-voltage flame-retardant, fire-resistant, or mineral-insulated fire-resistant cables, our product is the ideal choice.
Universal Integrated T-Core for Low Voltage Cable Branching
Our integrated T-branch connector core serves as the shared internal connection unit across our entire cable joint portfolio. Designed for non-cut main cable tapping, the assembly adopts high-purity brass conductive inserts for low contact resistance and long-term electrical performance. The engineered insulation carrier firmly positions conductors and prevents phase-to-phase short circuits. One core design fits multiple housing options: it can be assembled into standard flame retardant enclosures, fire survival housings or IP68 waterproof joint kits, greatly simplifying your project specification and stock management.
Underground Waterproof Cable Joint Kit (Full Assembly)
Our all-in-one underground cable joint kit combines the T-connector core with a complete waterproof sealing system. Package contents: two-component resin adhesive, impact-resistant outer housing, branch terminal blocks, sealing strips and installation accessories. Designed for direct burial, basement, car park and flood-prone environments. Delivers IP68 hermetic sealing after proper installation, protects connections from groundwater, moisture and soil corrosion, cuts on-site splicing time and passes site inspection smoothly.

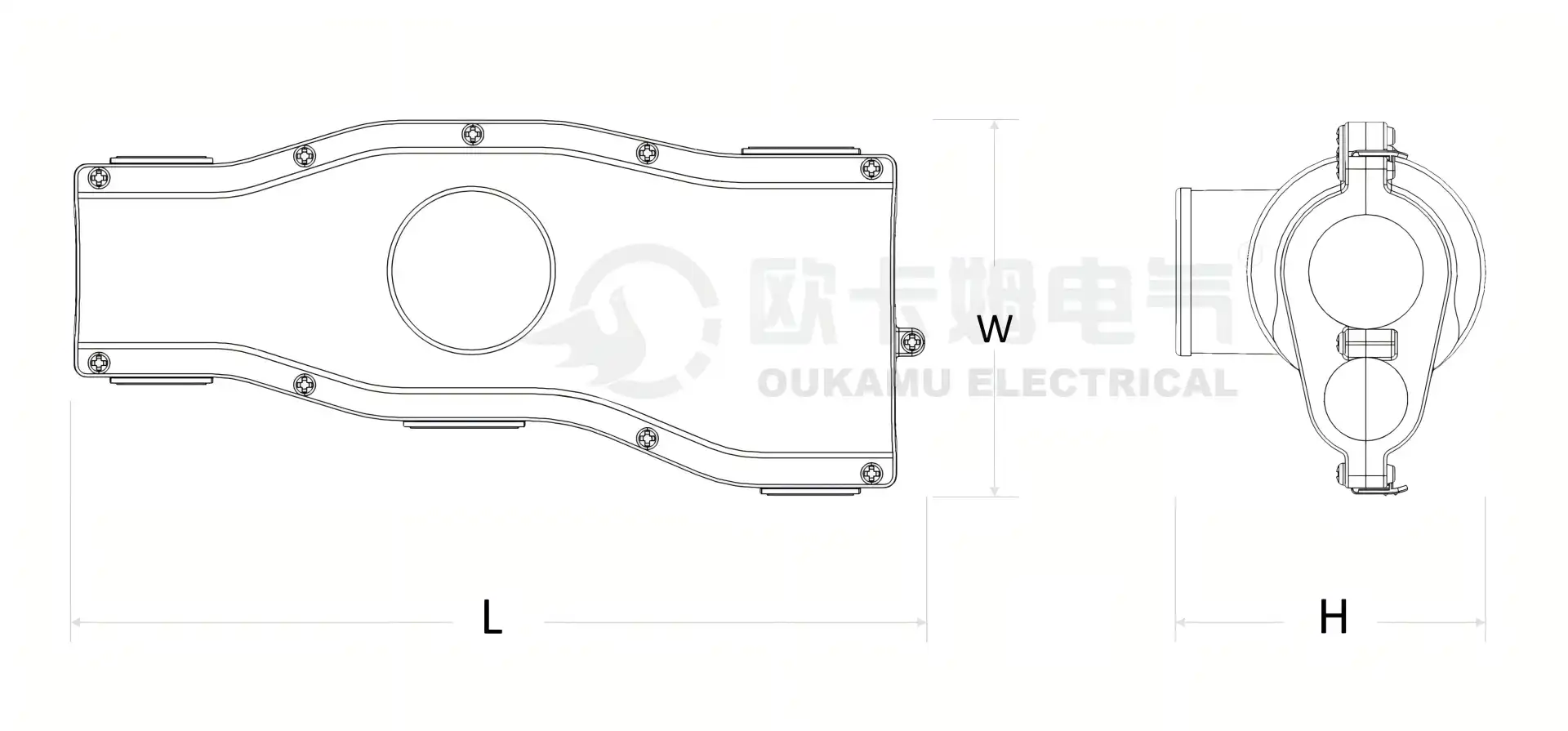

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
Voltage Rating: Suitable for low-voltage applications.
Cable Types: Compatible with flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Conductor Material: Copper or aluminum, depending on the application.
Insulation Material: High-quality, flame-retardant, and fire-resistant insulation.
Environmental Resistance: Dustproof, waterproof, and resistant to electrochemical corrosion.
Technical Features
No Main Cable Cut-off Required: The main cable remains intact, eliminating the need for cutting.
Integrated Connection: The main cable and branch cable are connected directly on the flame-retardant/fire-resistant insulated integrated T-connector body.
Sealed and Insulated Branch Cable: The branch cable is insulated and sealed as a whole, ensuring a safe and reliable connection.
Composition and Classification
Y-Branch Cable Joint is composed of several key components:
Integrated T-Connector Body: Made from high-quality, flame-retardant, and fire-resistant materials.
Insulation and Sealing Components: Provides a dustproof, waterproof, and anti-aging seal around the branch cable.
We offer a range of this to suit different applications and environments:
Standard: Ideal for general-purpose use.
Fire-Resistant : Specifically designed for applications requiring enhanced fire resistance.
Waterproof : Perfect for outdoor and wet environments.
Application Fields
The Y-Branch Cable Joint is versatile and can be used in a wide range of applications, including:
Commercial Buildings: Office complexes, shopping malls, and other commercial spaces.
Industrial Facilities: Factories, warehouses, and manufacturing plants.
Residential Projects: Apartment buildings, housing developments, and single-family homes.
Infrastructure Projects: Airports, train stations, and public utilities.
Special Applications: Hospitals, data centers, and other critical facilities where reliability and safety are paramount.
Our Certifications
Our Team
Packaging and Transportation
Our Y-Branch Cable Joints are carefully packaged to ensure they arrive in perfect condition. Each unit is individually wrapped and placed in a sturdy box, providing protection during transportation. We also offer custom packaging solutions to meet your specific needs.
For transportation, we work with trusted logistics partners to ensure timely and secure delivery. Whether you need local or international shipping, we have you covered.
