Armoured Cable Joints

Model: FH-JFZ-50/35
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 16~50mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Product Description

Armoured Cable Joints Introduction

Welcome to Xi'an OUKAMU, where we innovatOur integrated T-branch connector core serves as the shared internal connection unit across our entire cable joint portfolio. Designed for non-cut main cable tapping, the assembly adopts high-purity brass conductive inserts for low contact resistance and long-term electrical performance. The engineered insulation carrier firmly positions conductors and prevents phase-to-phase short circuits. One core design fits multiple housing options: it can be assembled into standard flame retardant enclosures, fire survival housings or IP68 waterproof joint kits, greatly simplifying your project specification and stock management.e and lead in the development of cable T-connection technology. Our Armoured Cable Joints represent a groundbreaking advancement in cable branch connection solutions. Invented in 2015, these joints are designed for convenient, quick, safe, and reliable connections between multi-core main and branch cables. Our product ensures seamless connections without compromising on safety or aesthetics, making it an essential component in modern electrical installations.

modular-1

Universal Integrated T-Core for Low Voltage Cable Branching



Our integrated T-branch connector core serves as the shared internal connection unit across our entire cable joint portfolio. Designed for non-cut main cable tapping, the assembly adopts high-purity brass conductive inserts for low contact resistance and long-term electrical performance. The engineered insulation carrier firmly positions conductors and prevents phase-to-phase short circuits. One core design fits multiple housing options: it can be assembled into standard flame retardant enclosures, fire survival housings or IP68 waterproof joint kits, greatly simplifying your project specification and stock management.

Flexible Mineral-Insulated Adhesive for Cable Joints



This flexible mineral insulation adhesive starts ceramization at about 350°C. It sinters rapidly into a rigid, integral ceramic shell above 500~600°C. The ceramic barrier becomes denser at higher temperatures, without melting or dripping, to protect cable joints during fire. It remains flexible under normal operating temperature.

modular-2

product-1-1

●Product Performance

Fire Resistance Performance:

•Circuit Integrity C: After being subjected to fire (950°C–1000°C) for 180 minutes, the circuit remains intact.

•Circuit Integrity W: After being subjected to fire (650°C–700°C) for 15 minutes, followed by water spray and continued fire exposure for another 15 minutes, the circuit remains intact.

•Circuit Integrity Z: After being subjected to fire (950°C–1000°C) and mechanical vibration for 15 minutes, the circuit remains intact.

•Protection Rating: IP65 (prevents ingress of foreign objects, dust, rain, and jet water; suitable for non-immersion applications).

•Insulation Resistance: At 90% humidity, test voltage 1kV, phase-to-phase insulation resistance > 10,000MΩ.

•Withstand Voltage: At 90% humidity, applied voltage 3.5kV for 5 minutes, no phase-to-phase breakdown.

Complies with the requirements of BS6387:2013 "Test method for resistance to fire of cables required to maintain circuit integrity under fire conditions" and Q/OKM01-2018 "Integrated branch devices with rated voltage 0.6/1kV" for circuit integrity, conductor continuity, thermal cycling tests, and other standard requirements.

Certified and tested qualified by the National Engineering Laboratory for High-Speed Railway Construction Technology, the National Center for Quality Supervision and Testing of Fire Building Materials, the National Quality Supervision and Testing Center for Wire and Cable, and Oukamu Electric Co., Ltd.




product-783-783
Title

Dimension

Fire Resistant Cable Joints

Parameters

MODEL

Specification (cross-sectional area of cable core conductors (mm²)

Technical Parameters

Main Cable

(2~5 Cores)

Branch Cable

(2~5 Cores)

Rated Voltage(kV)

Rated Current(A)

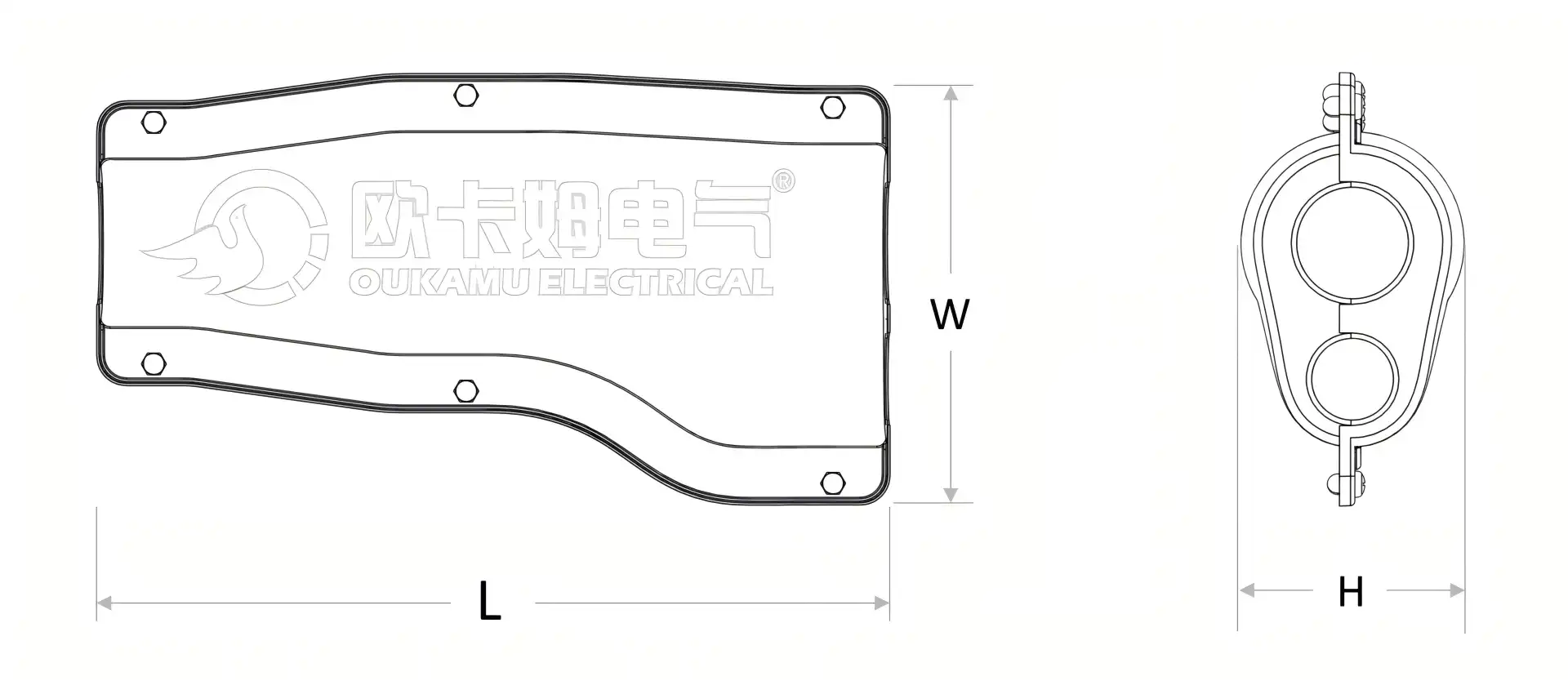

Size

L*W*H(mm)



Copper Core

FH-JFZ-16/10

4~16

1.5~10

0.6/1

72

210*140*65

FH-JFZ-35/16

10~35

2.5~16

0.6/1

95

300*160*80

FH-JFZ-70/35

25~70

2.5~35

0.6/1

150

415*170*85

FH-JFZ-50/35

16~50

2.5~35

0.6/1

150

415*190*105



NH-JFZ-16/10

4~16

1.5~10

0.6/1

72

220*110*65

NH-JFZ-35/16

10~35

2.5~16

0.6/1

95

300*125*85

NH-JFZ-70/35

25~70

2.5~35

0.6/1

150

360*135*90

NH-JFZ-50/35

16~50

2.5~35

0.6/1

150

415*185*100

Installation Steps

cable branch

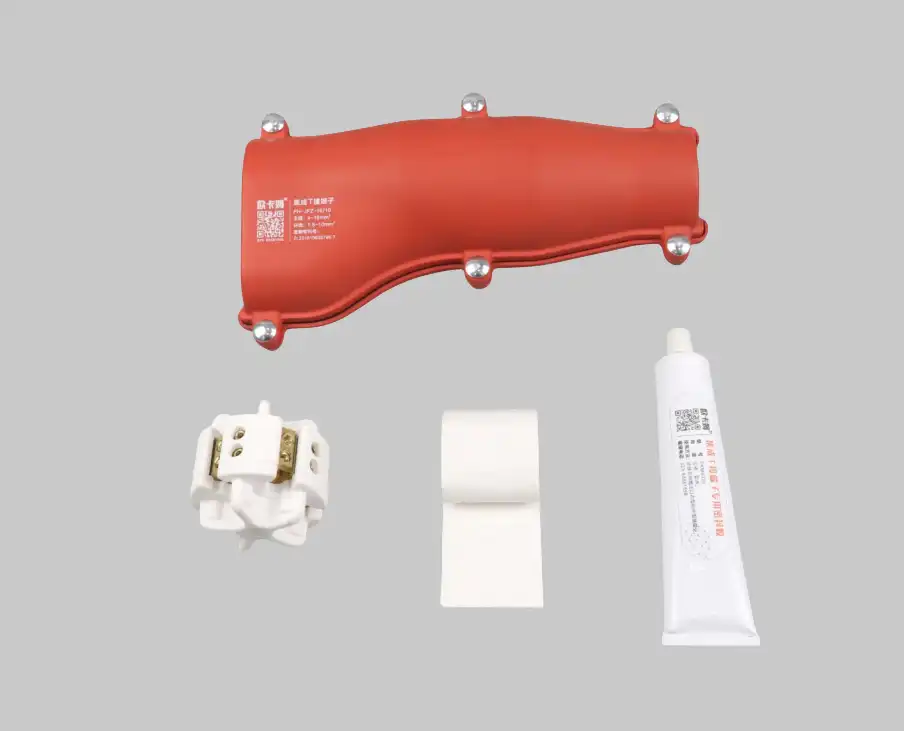

1.Tools
branch cable joint
2.Determine the installation location
branch cable joint

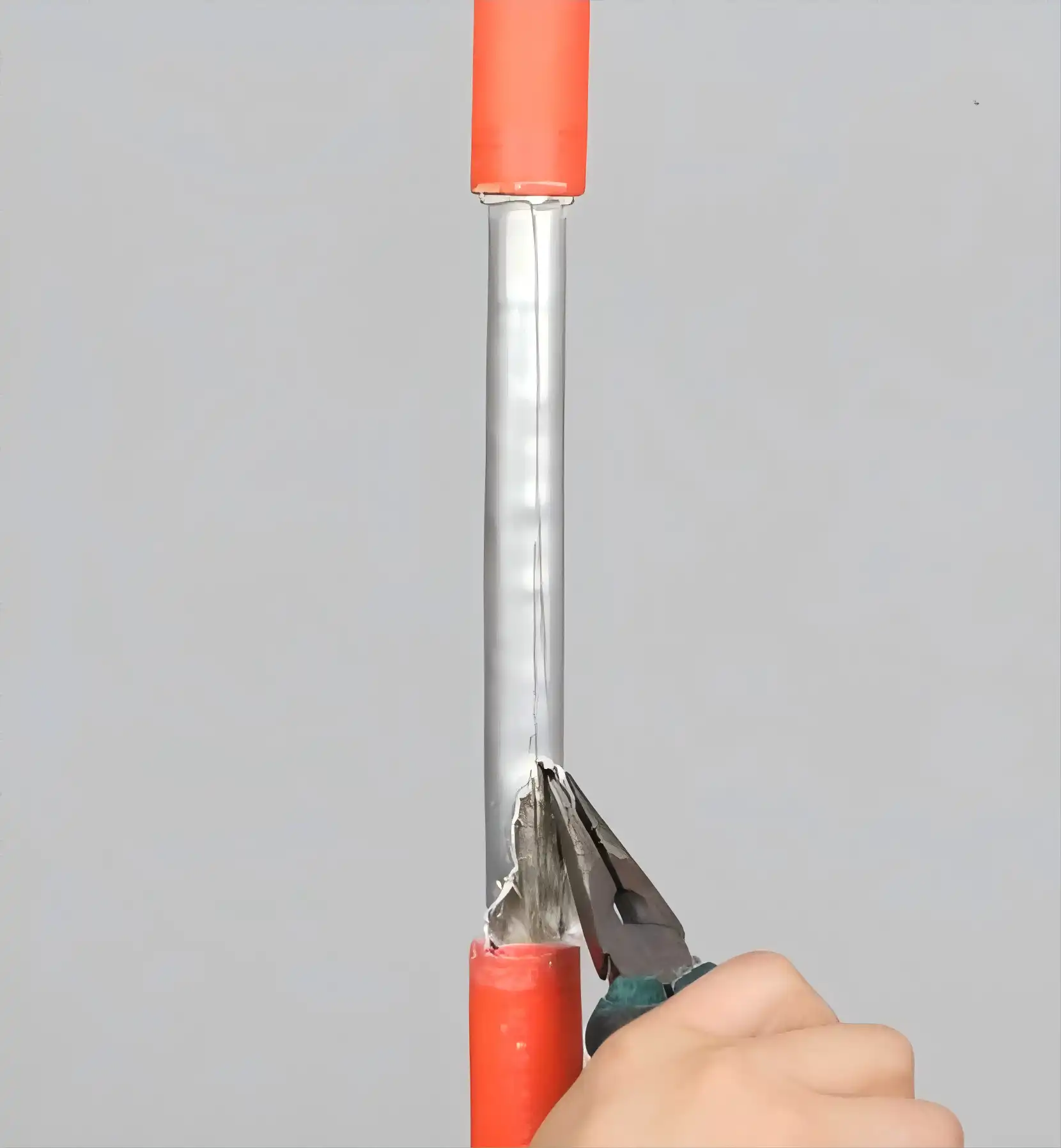

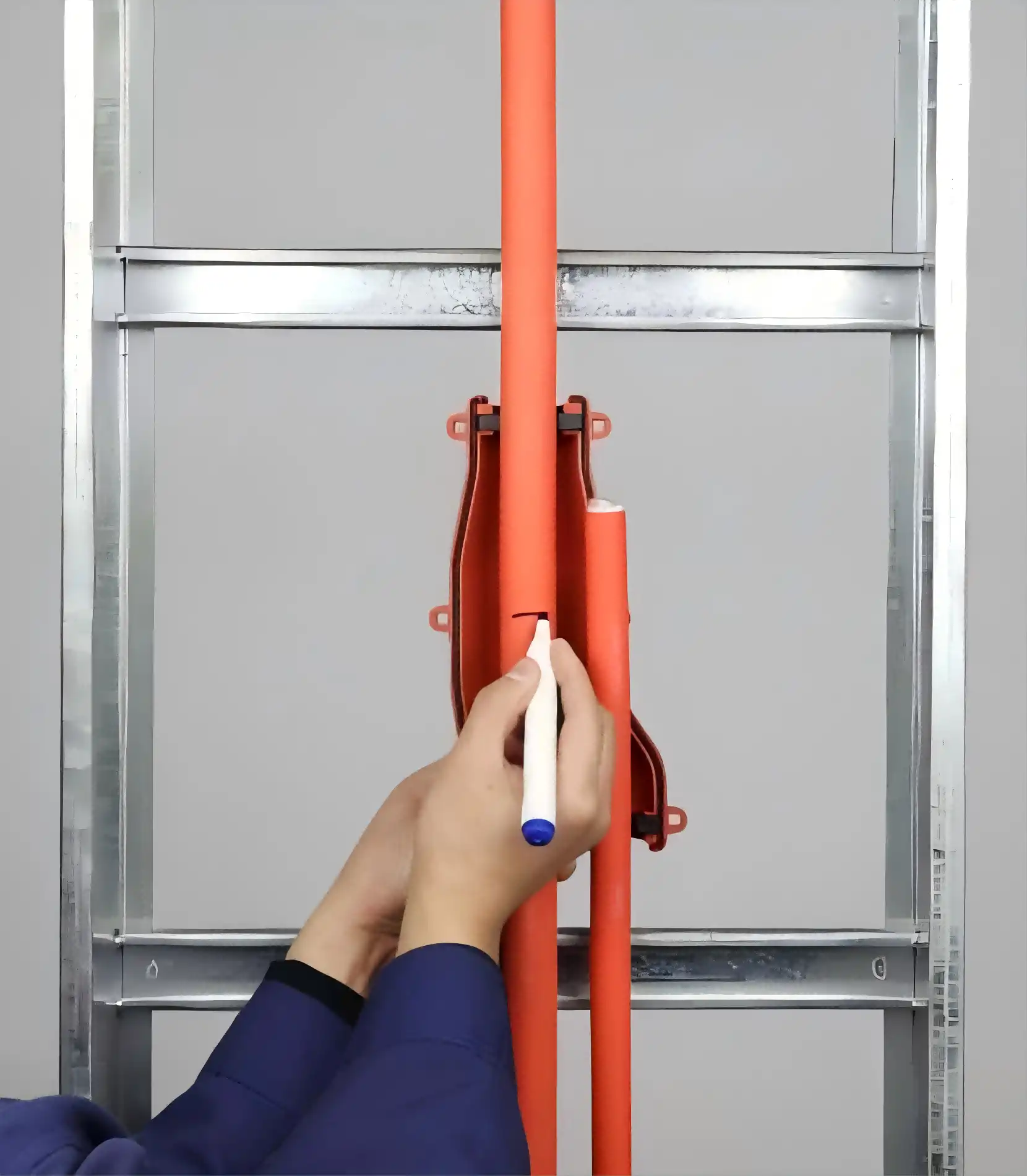

3.Strip the outer sheath and metal layer
branch cable joint

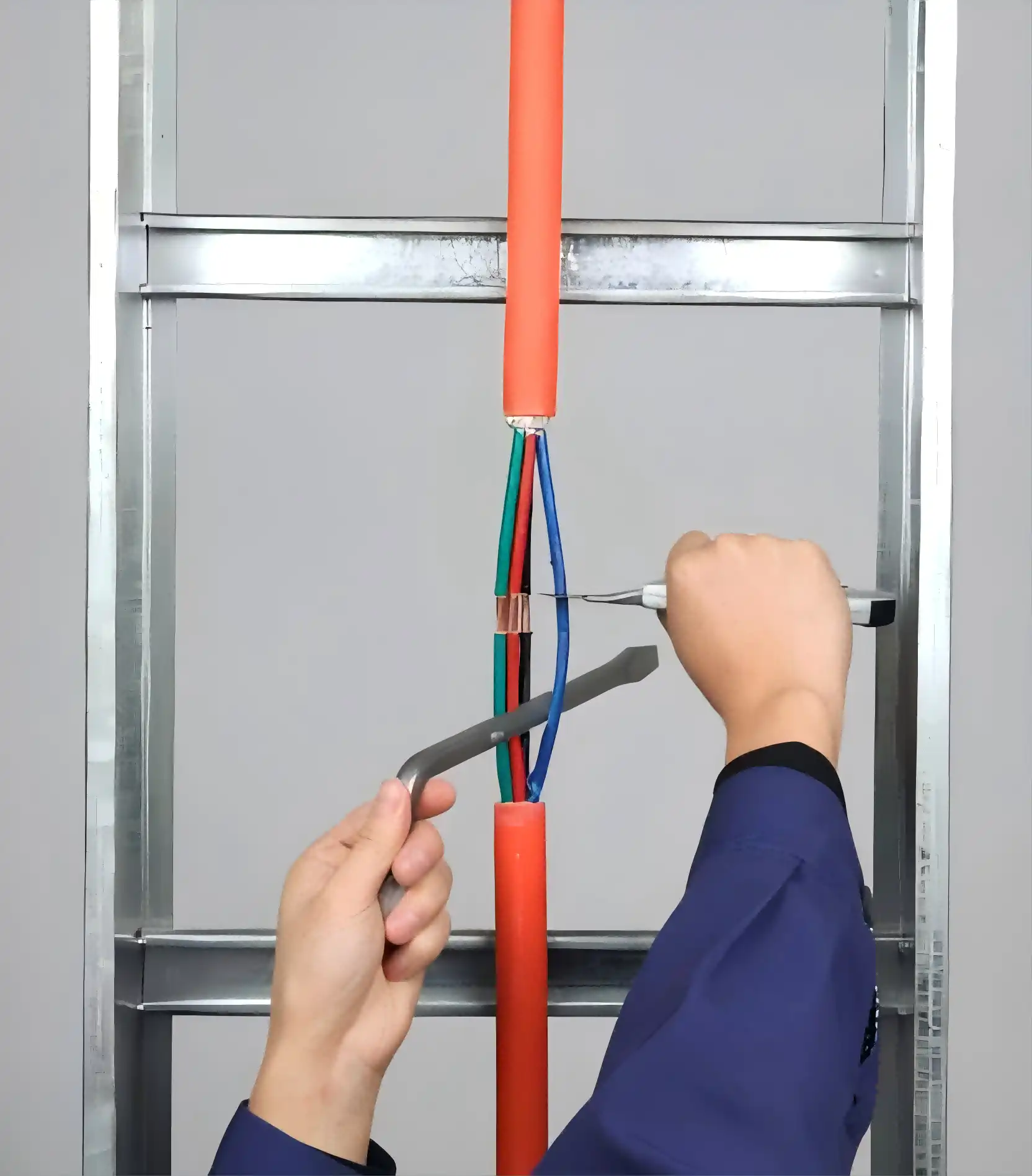

4.Stripping of main cable insulation
branch cable joint

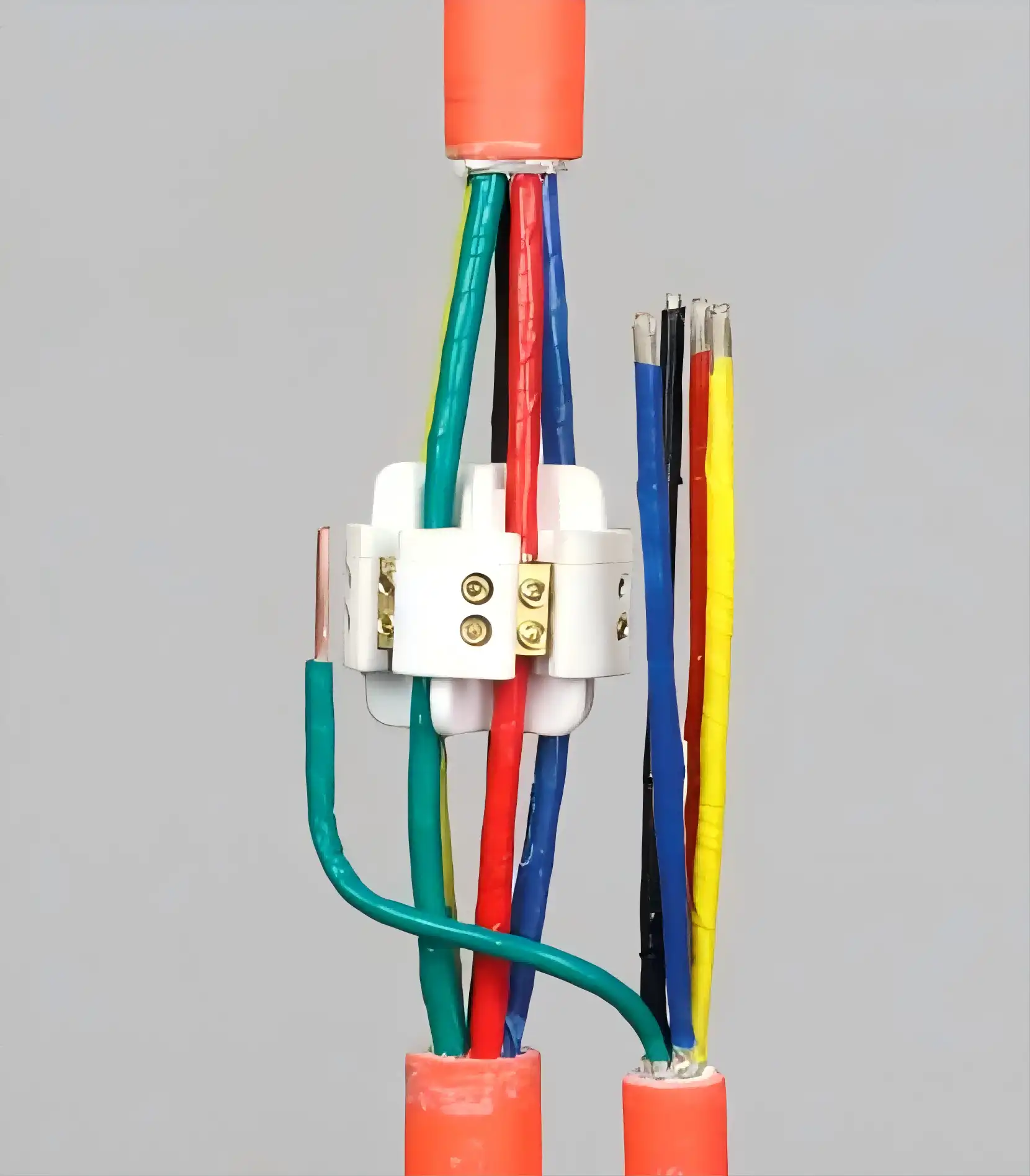

5.Install the branch cable body
cable branch joint

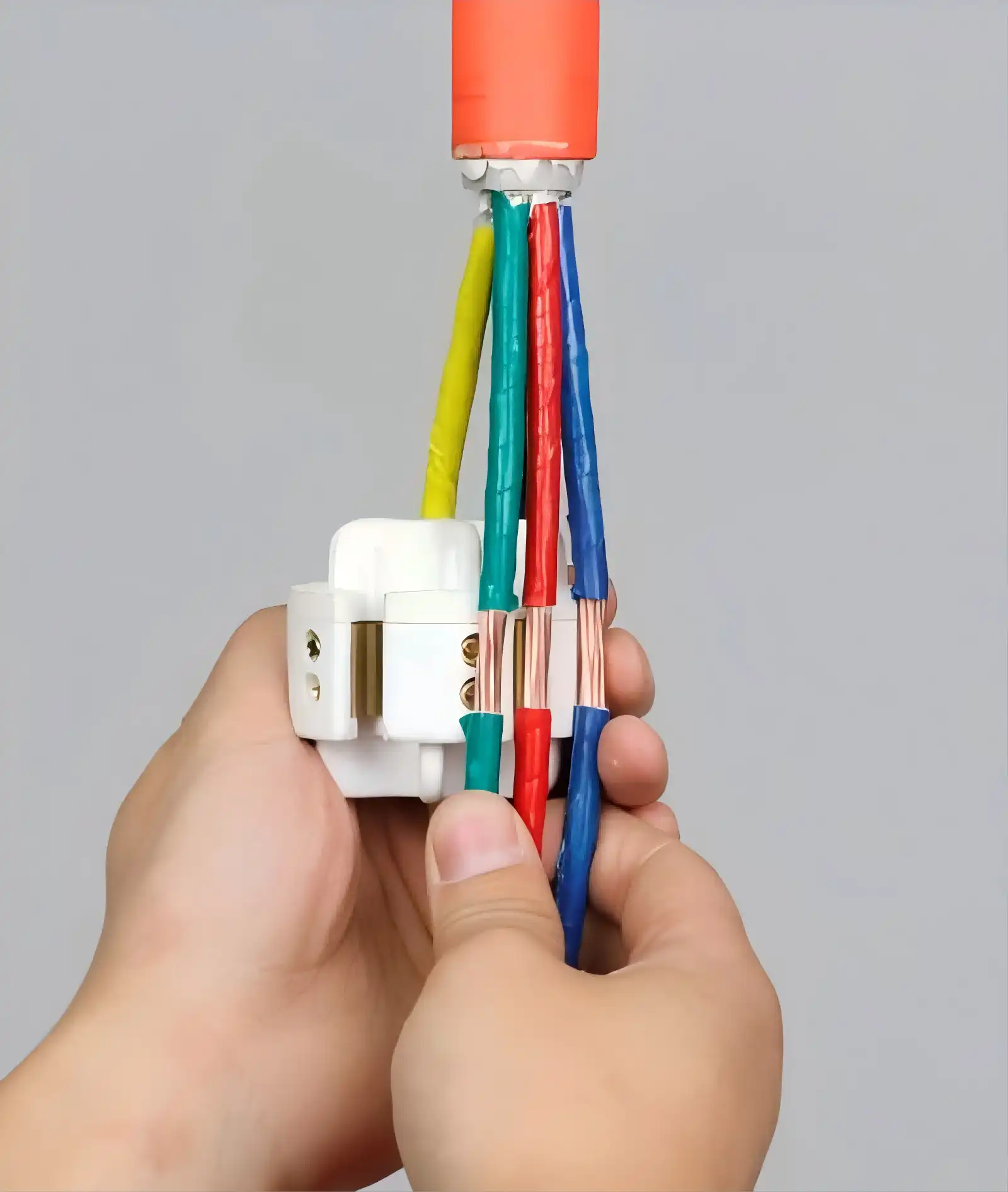

6.Install the branch cables
cable branch joint

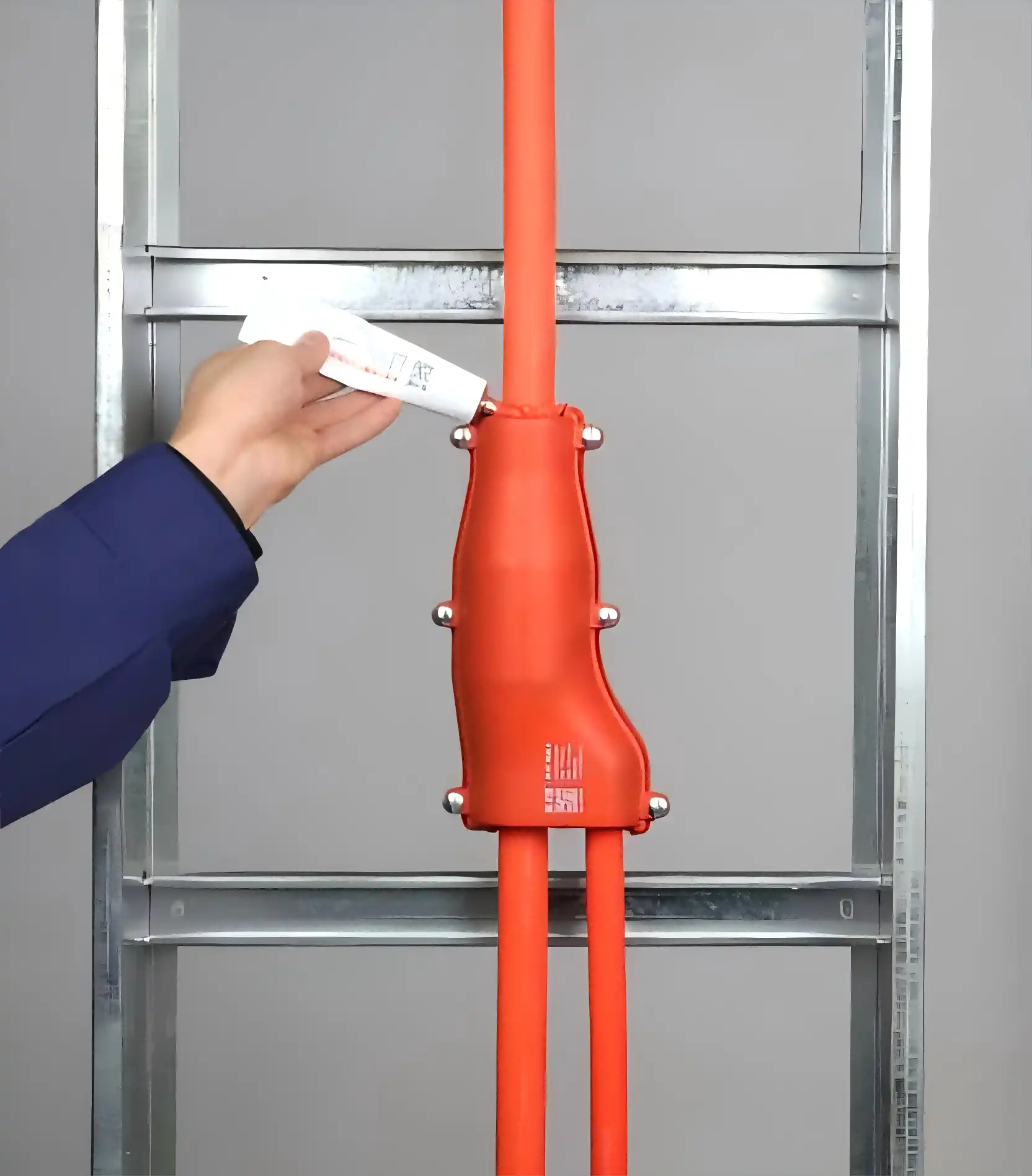

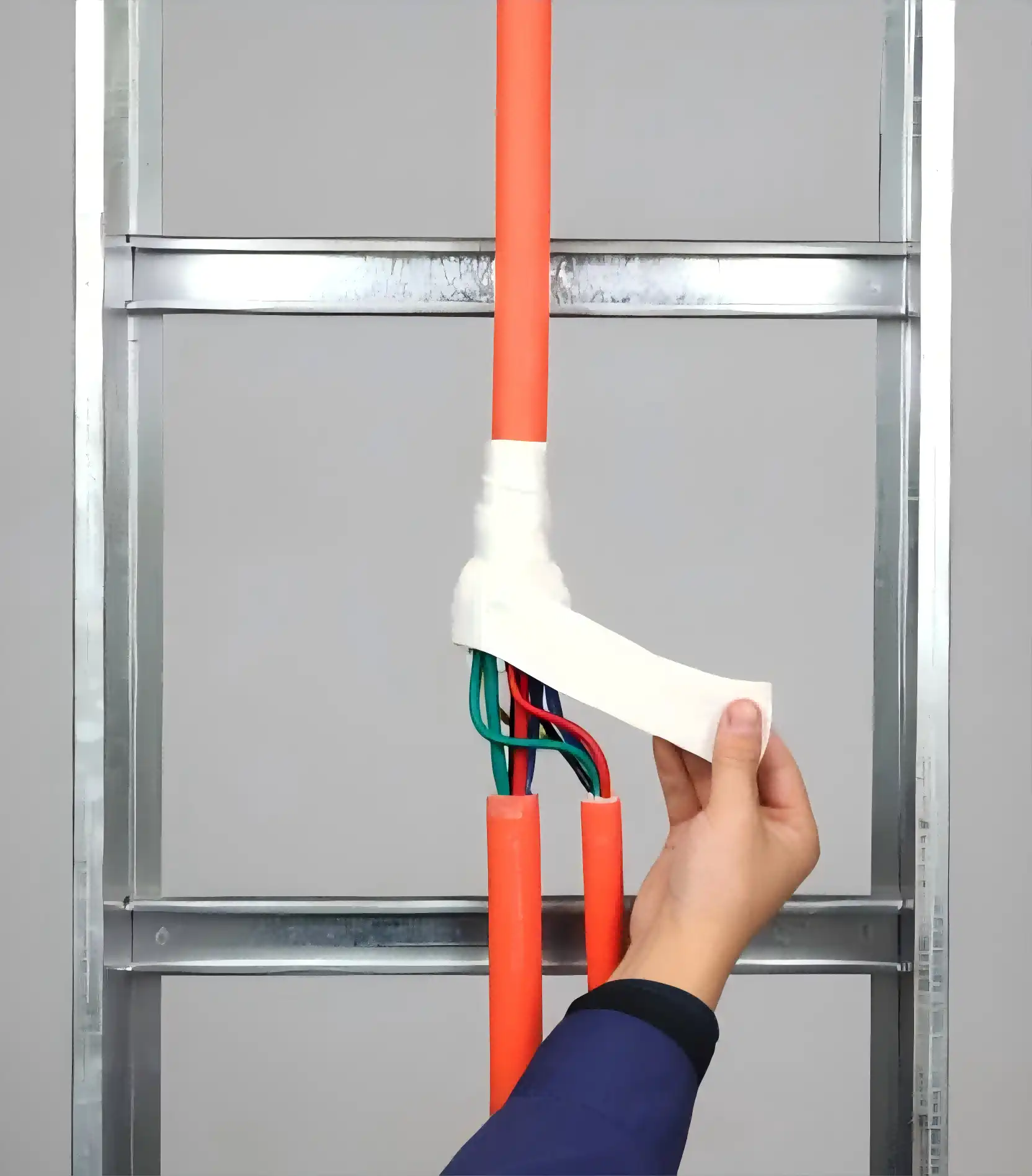

7.Wrap insulation refractory adhesive

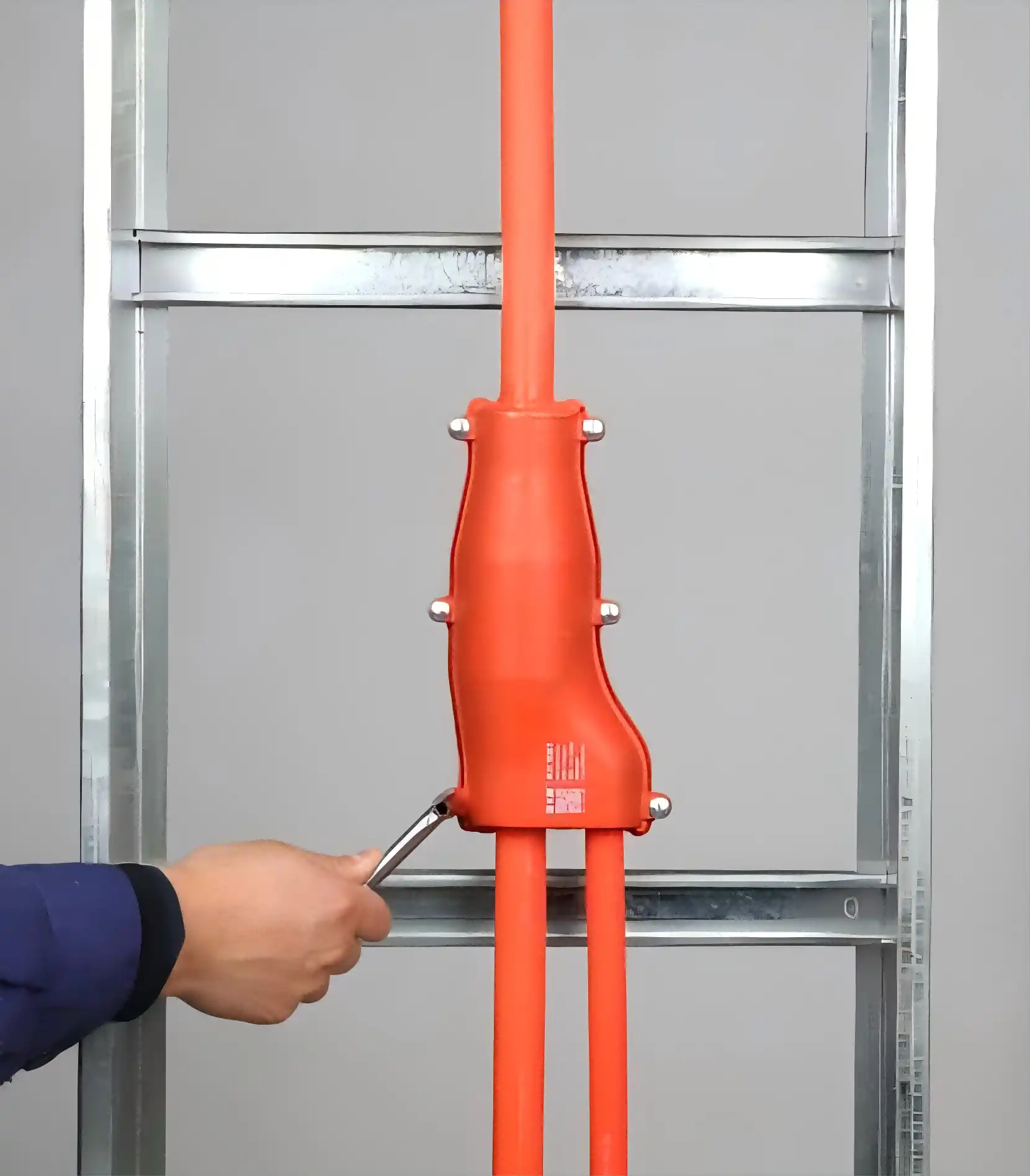

cable branch
8.Snap-on protective housing
cable branch
9.Lock and glue the cable outlet

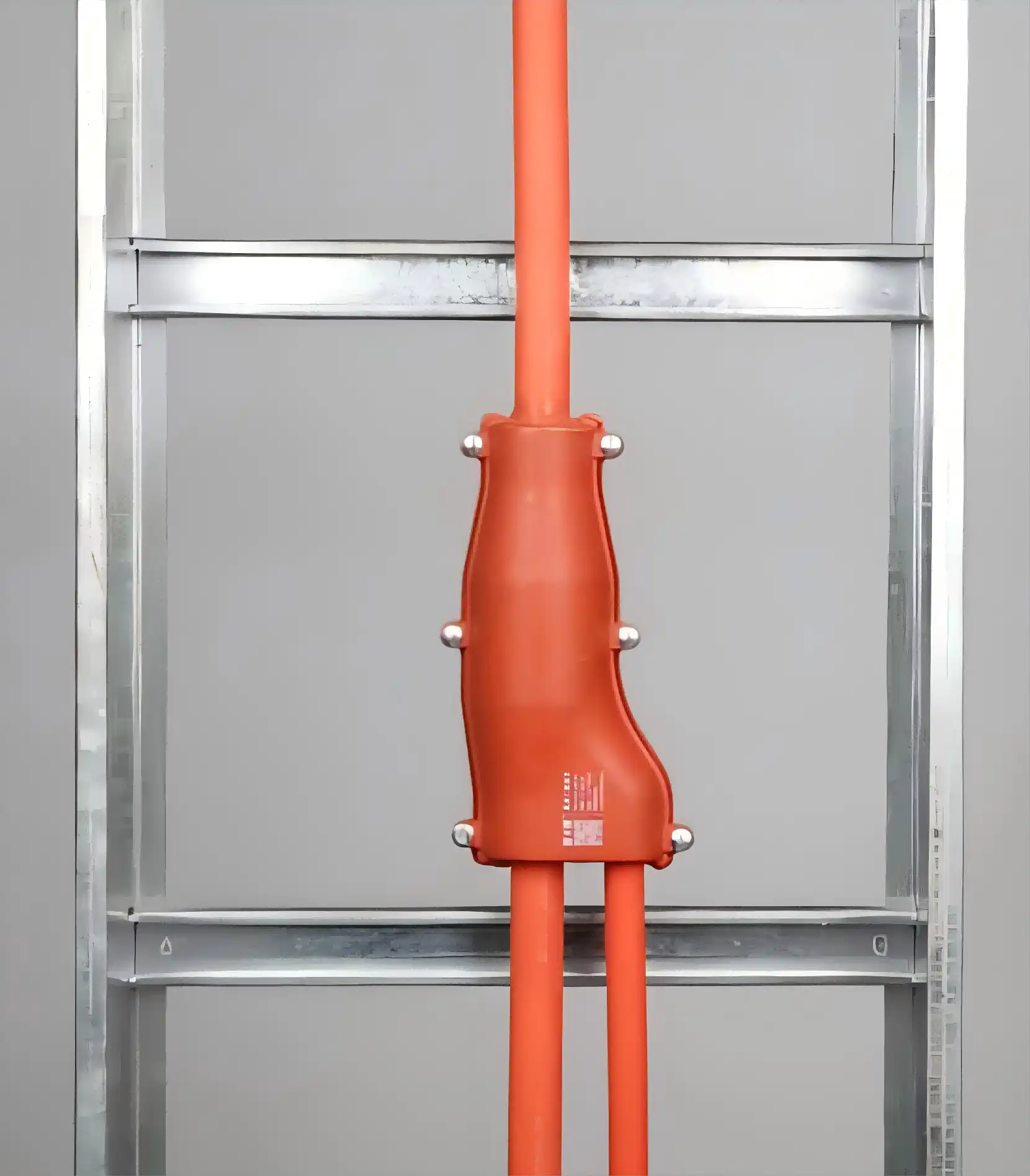

cable branch
10.Installation completed

Technical Parameters

Our Armoured Cable Joints are meticulously designed to meet the highest standards of performance and safety. Here are the key technical parameters:



Fire-resistant Temperature: 750~1000℃

Withstand Voltage: 3.5kV

Voltage Drop: <3.2mV

Insulation Resistance: >500MΩ

Voltage Rating: Suitable for low-voltage applications

Cable Compatibility: Flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables

Material: High-grade flame-retardant and fire-resistant insulation materials

Technical Features

Our product boast several innovative technical features:

Non-Interruption of Main Cable: No need to cut the main cable during installation, ensuring continuous connectivity.

Integrated Connection: The main and branch cables are securely connected using our flame-retardant/fire-resistant insulated integrated T-connector body.

Insulated and Sealed: The branch cable is insulated and sealed as a whole, providing excellent protection against environmental factors.

Composition and Classification

Our product are composed of high-quality materials that ensure durability and performance in various applications.

The product can be classified into different types based on the specific requirements of the installation:

Type A: For standard flame-retardant cables

Type B: For fire-resistant cables

Type C: For mineral-insulated fire-resistant cables

Type D: For insulated waterproof cables

Each type is designed to cater to specific needs, ensuring that you have the right solution for your project.

Application

Our product are versatile and can be used in a wide range of applications, including:

Residential Buildings: Ensuring safe and reliable electrical connections in apartments and houses.

Commercial Buildings: Ideal for offices, malls, and other commercial establishments.

Industrial Facilities: Suitable for factories, warehouses, and other industrial settings.

Public Infrastructure: Perfect for use in public transportation systems, hospitals, and educational institutions.

These joints are essential in any environment where safety, reliability, and ease of installation are paramount.
