Low Voltage Lighting Distribution Box
Specialised in insulated waterproof distribution box for 20 years;
Insulated and waterproof，no leakage, safe and reliable;
Simple construction and easy maintenance;

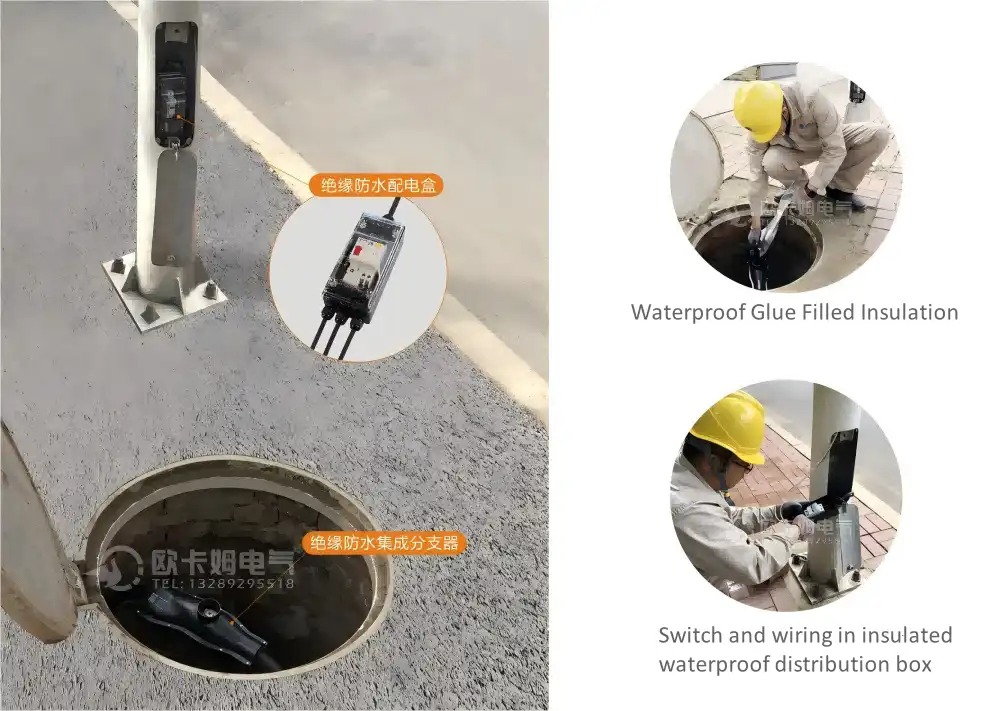

Installed in street light switches, light poles and wiring doors;
Can be assembled with 3P circuit breaker, 1P+N earth leakage circuit breaker, 3P fuse and other rail type street light switch."
Low Voltage Lighting Distribution Box - Professional Power Distribution Solution
Xi'an OUKAMU Power Technology Co., Ltd. brings over 17 years of specialized expertise in manufacturing insulated waterproof distribution solutions. Our Low Voltage Lighting Distribution Box (Model FPD-85/3L) features IP68-grade waterproof protection with integrated resin sealing technology, ensuring zero leakage and maximum safety. This maintenance-free solution supports installation in street light switches, light poles, and wiring enclosures. Compatible with 3P circuit breakers, 1P+N earth leakage breakers, and 3P fuses, it delivers reliable performance across diverse lighting applications. Backed by over 150 national invention patents, our products serve more than 10,000 infrastructure projects worldwide.
Why Choose OUKAMU Low Voltage Distribution Solutions?
Our distribution boxes address the critical challenges in modern lighting infrastructure. Traditional junction methods often fail in harsh outdoor environments due to water ingress and inadequate insulation.
The OUKAMU solution eliminates these concerns through comprehensive waterproof encapsulation. Your lighting circuits remain protected even in underground cable wells and direct burial installations.
Designed for electrical contractors and facility managers, our boxes simplify installation workflows. You won't need specialized tools or extensive training. The intuitive design reduces labor costs while improving project timelines.
Advanced Waterproof Protection Technology
Resin potting the whole body provides an impermeable barrier to moisture and pollutants. This combined sealing technique results in the greatest level of waterproof rating, IP68.

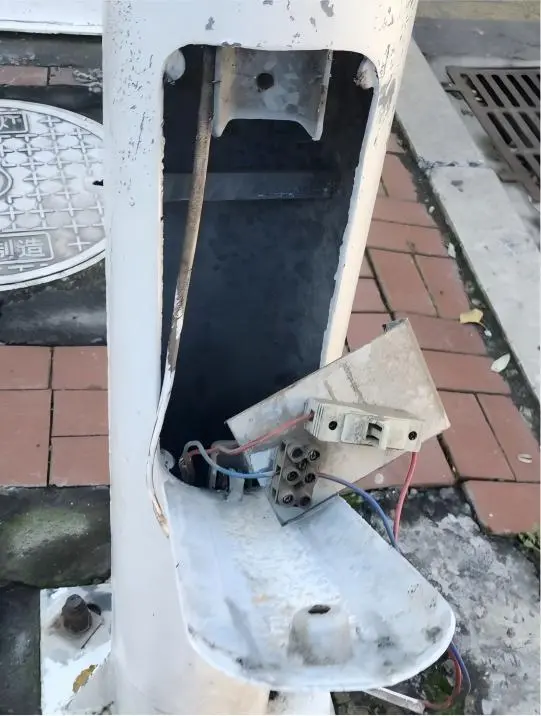

Exposed cable cores are a thing of the past. The housing is enclosed, keeping all the connections safe inside. This arrangement is ideal for challenging settings like subterranean vaults or outdoor installations.
The Polycarbonate clear housing permits visual examination without opening the device. Rapid testing of connection integrity and component status shortens maintenance time.
Flexible Installation for Multiple Applications

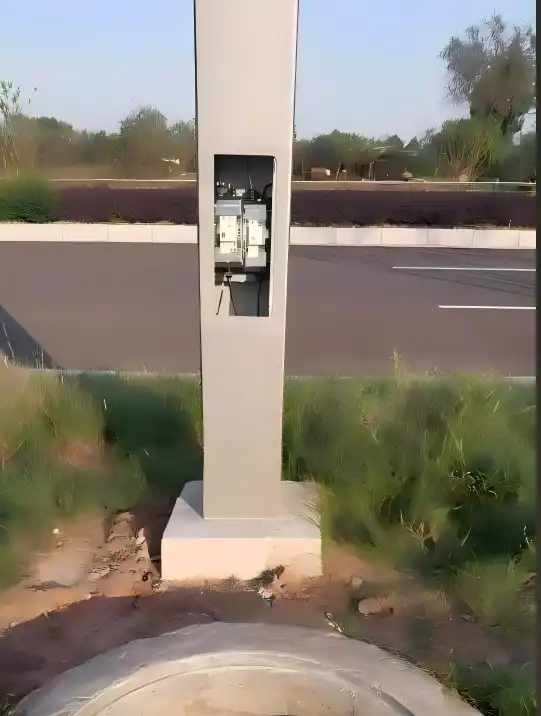

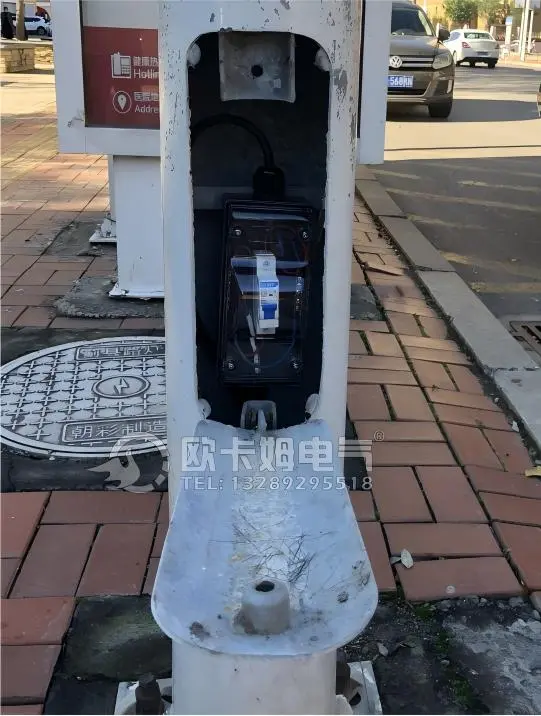

Street lighting systems demand reliable distribution points at various locations. Our boxes mount easily on light poles, within control cabinets, or inside junction enclosures.
Switch compatibility, adds versatility, rail-mounted. Be it circuit breakers, RCD units or fuse holders, your chosen protection devices will fit the standardised rail system.
Branches can be connected without cutting the main cables. The trunk line retains its load-carrying capability and mechanical robustness while distributing power to many lighting circuits.
Parameters
|
MODEL
|
Specification
|
Technical Parameters
|
||||
|
Cable Dia.
（mm） |
Cross Sectional Area
(mm2)
|
Rated Voltage
（kV）
|
Protection Level
|
Circuit
|
Size
L*W*H (mm)
|
|
|
FPD-85/3L
|
6~15
|
1~10
|
0.6/1
|
IP66
|
1~3L
|
180*85*85
|
|
OPD-85/3L
|
6~15
|
1~10
|
0.6/1
|
IP63
|
1~3L
|
180*85*85
|
Technical Parameters
|
Parameter
|
Description
|
|---|---|
|
Safety Protection Level
|
IP>65
|
|
Installation Location
|
Inside the door of street light switches and wiring
|
|
Material
|
High-quality, durable materials
|
|
Dimensions
|
Compact structure, suitable for various installation scenarios
|
Cost-Effective Solution for Modern Projects
Budget constraints shouldn't compromise safety standards. Our Low Voltage Lighting Distribution Box delivers premium protection at competitive prices.
Reduced installation time translates directly to lower labor expenses. Your teams complete connections faster without sacrificing quality or reliability.
The maintenance-free design eliminates recurring service costs. Once installed, these units operate reliably for decades without intervention. This long-term value proposition makes them ideal for municipal projects and commercial developments.
Space optimization represents another economic advantage. Compact dimensions reduce footprint requirements in crowded electrical rooms and pole-mounted applications.
Proven Performance Across Major Infrastructure
Our cable connection technology has been used in historic projects such as the Hong Kong-Zhuhai-Macao Bridge and metro systems. These difficult applications are a testament to our engineering excellence.
Our flame retardant qualities and sealed construction are advantageous for tunnel lighting systems. Our products are used in railway projects where they have to tolerate vibration and temperature swings.
OUKAMU systems are trusted in commercial buildings, residential complexes and public facilities across Asia. This history shows a consistent performance under different operational situations.
Comprehensive Safety Features
The electrical insulation is of the greatest quality in the industry. The dielectric strength and the mechanical protection against physical damage is provided by the resin potting material.
Fire safety compliance comprises flame-retardant housing materials and components In an emergency your lighting distribution system will not add to fire spread.
Short circuit protection is readily incorporated using the proper breakers and fuses. The housing withstands fault situations without affecting surrounding systems.
Options for ground fault prevention provide personnel safety during maintenance operations. Proper earthing connections are made to avoid harmful contact voltages in accessible places.
FAQ
Q: Can low voltage distribution boxes be installed in outdoor environments?
A: Yes, our IP68-rated enclosures are specifically engineered for outdoor applications. The waterproof resin sealing prevents moisture ingress even when submerged. They perform reliably in rain, snow, and high-humidity conditions without degradation.
Q: Do I need special tools for installation?
A: No specialized equipment is required. Standard electrical tools suffice for cable preparation and connection. The rail-mounted breaker system uses conventional installation methods familiar to qualified electricians.
Q: How does this compare to cutting the main cable for branches?
A: Our uncut trunk cable design maintains full current-carrying capacity along the main line. Traditional cut-and-splice methods create weak points and reduce conductor cross-section. Your system retains original design specifications and reliability.
Q: What cable sizes can connect to these boxes?
A: The FPD-85/3L accommodates cables from 10mm² to 300mm² cross-section. Both single-core and multi-core configurations (2, 3, 4, or 5 cores) connect without adapters. This range covers most street lighting and area lighting applications.
Q: How long will these distribution boxes last?
A: With proper installation, expect 20+ years of maintenance-free service. The UV-resistant housing and corrosion-proof components withstand environmental exposure. Our products in projects from the 2000s continue operating without issues.
Q: Can I use these boxes for security camera power distribution?
A: While primarily designed for lighting circuits, low-voltage camera systems can utilize these boxes where appropriate voltage ratings align. Verify your camera power requirements match the distribution box specifications before installation.
Contact Us for Professional Support
Ready to upgrade your Low Voltage Lighting Distribution Box infrastructure? Contact us at info@okmbranchcable.com for specifications, quotations, and project consultation.
