Armoured Cable Jointer
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Comprehensive cost can be reduced by 300%~500%, high cost performance.
What is an Armoured Cable Jointer?
In the world of electrical connections, safety and efficiency are paramount. The Armoured Cable Jointer, also known as the integrated T-connector, is a game-changing solution that revolutionizes the way we connect multi-core main cables and branch cables. Invented by Xi'an Oukamu Electric Co., Ltd. in 2015, this innovative product has been transforming the industry with its convenience, speed, and reliability.
Our Armoured Cable Jointer is a type of cable branch connection product designed for low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. It allows for easy and safe connection of main cables and branch cables on-site, eliminating the need for cutting or damaging the cables.

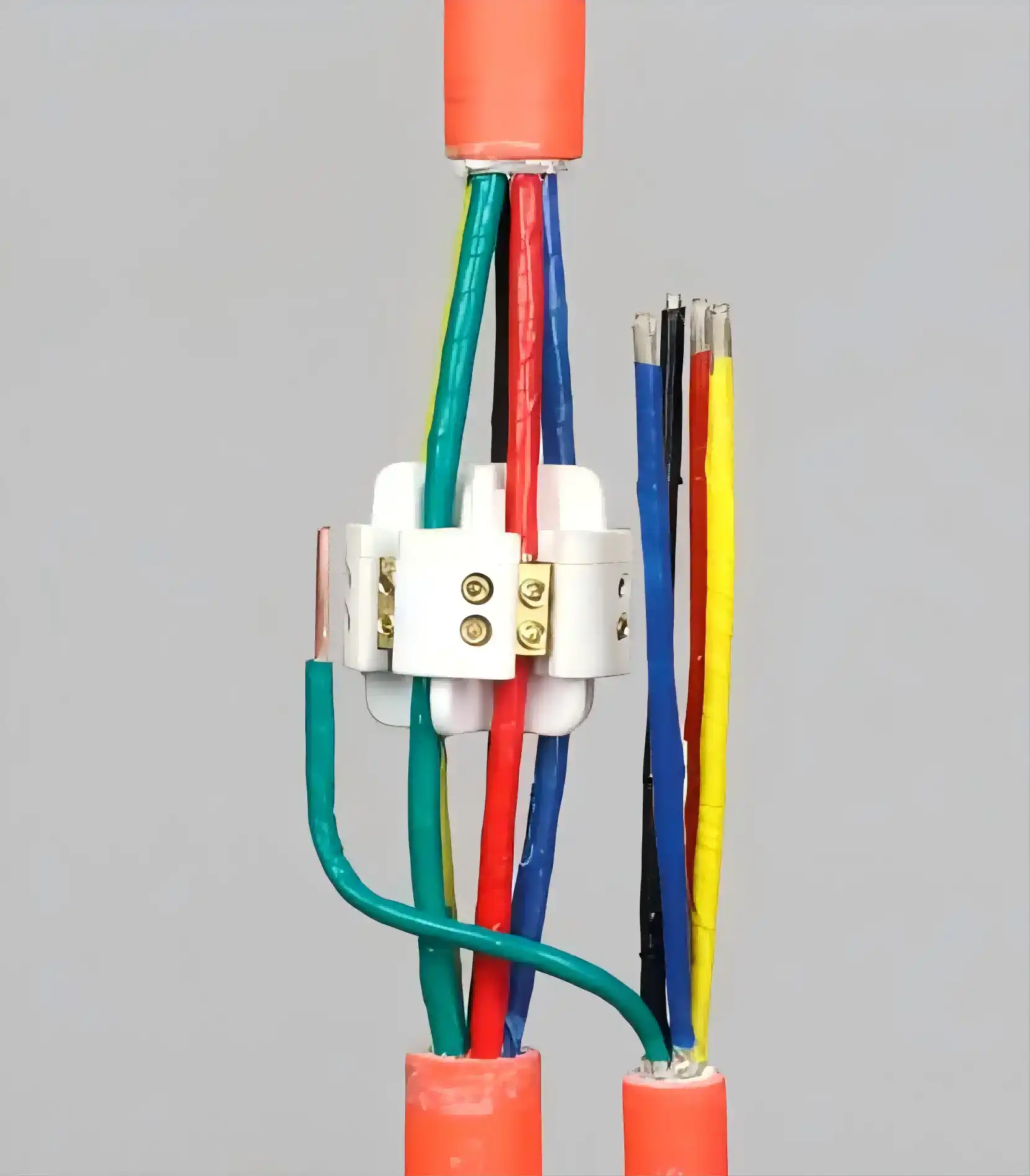

Integrated T-Terminal Block
Flame-Retardant Type: Designed for T-junctions of flame-retardant cables, injection-moulded from high-quality reinforced, flame-retardant, and high-temperature-resistant engineering plastic insulation.
Fire-Resistant Type: Designed for T-junctions of fire-resistant (including mineral-insulated fire-resistant) cables, fabricated from fired mineral insulating refractory materials, capable of withstanding temperatures in excess of 1500°C.
Sealing Tape
Function:Wrapped around the outer sheaths of the main cable and branch cables, it seals the clearances between the cables and the respective feedthrough opening (for the main cable) and branch outlet in the protective enclosure, thereby preventing the ingress of dust and solid particulates into the housing.
Performance & Characteristics:Single-sided adhesive coating (pressure‑sensitive) Elastic material providing flexibility to accommodate minor deformations
Easy and convenient on‑site application Excellent sealing performance, ensuring reliable protection
Flame‑retardant, complying with relevant safety standards for cable accessories
Housing Combustion Test
OUKAMU integrated cable branch connectors demonstrated outstanding performance in high-temperature combustion tests and successfully passed inspection by the National Center for Quality Supervision and Testing of Fire-Resistant Building Materials.
Product Performance
●Product Performance
Fire Resistance Performance:
•Circuit Integrity C: After being subjected to fire (950°C–1000°C) for 180 minutes, the circuit remains intact.
•Circuit Integrity W: After being subjected to fire (650°C–700°C) for 15 minutes, followed by water spray and continued fire exposure for another 15 minutes, the circuit remains intact.
•Circuit Integrity Z: After being subjected to fire (950°C–1000°C) and mechanical vibration for 15 minutes, the circuit remains intact.
•Protection Rating: IP65 (prevents ingress of foreign objects, dust, rain, and jet water; suitable for non-immersion applications).
•Insulation Resistance: At 90% humidity, test voltage 1kV, phase-to-phase insulation resistance > 10,000MΩ.
•Withstand Voltage: At 90% humidity, applied voltage 3.5kV for 5 minutes, no phase-to-phase breakdown.
Complies with the requirements of BS6387:2013 "Test method for resistance to fire of cables required to maintain circuit integrity under fire conditions" and Q/OKM01-2018 "Integrated branch devices with rated voltage 0.6/1kV" for circuit integrity, conductor continuity, thermal cycling tests, and other standard requirements.
Certified and tested qualified by the National Engineering Laboratory for High-Speed Railway Construction Technology, the National Center for Quality Supervision and Testing of Fire Building Materials, the National Quality Supervision and Testing Center for Wire and Cable, and Oukamu Electric Co., Ltd.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |

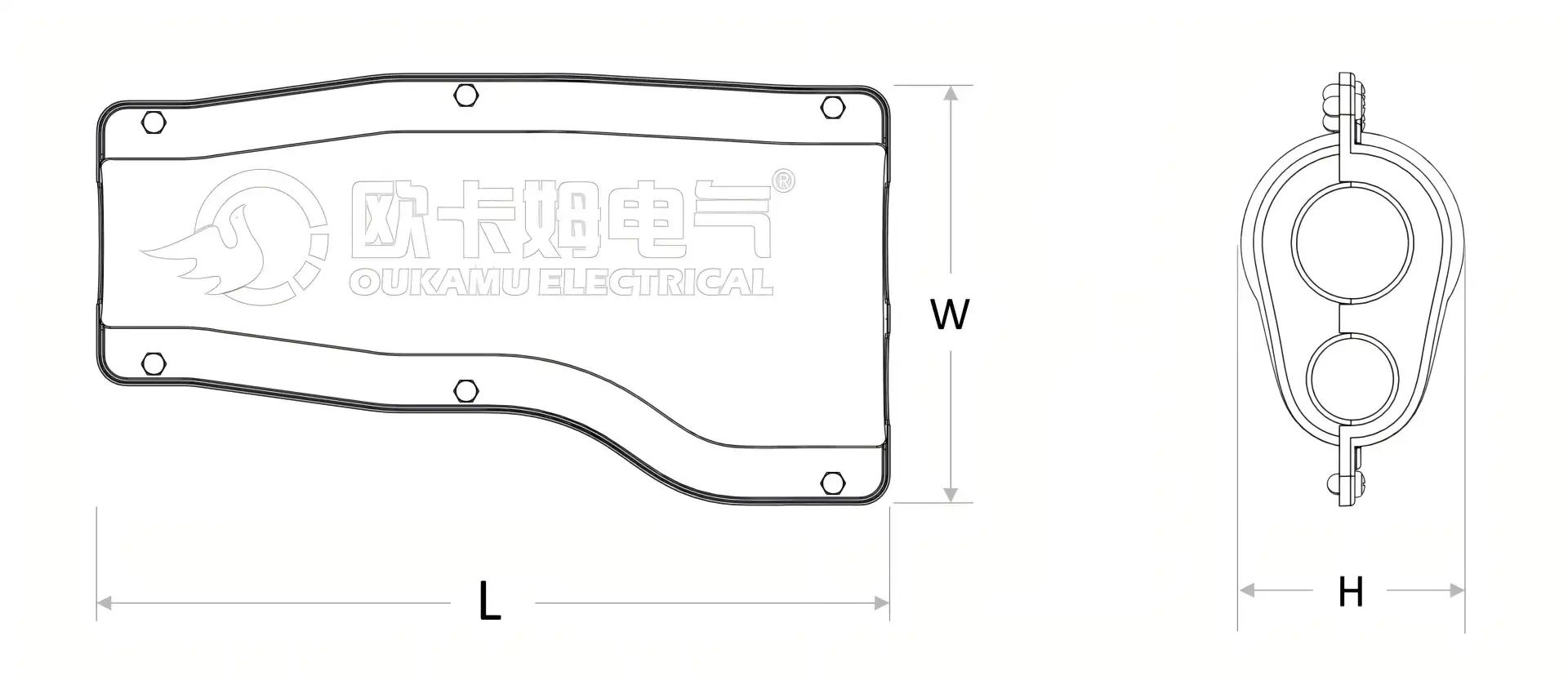

Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
| NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |
Installation Steps

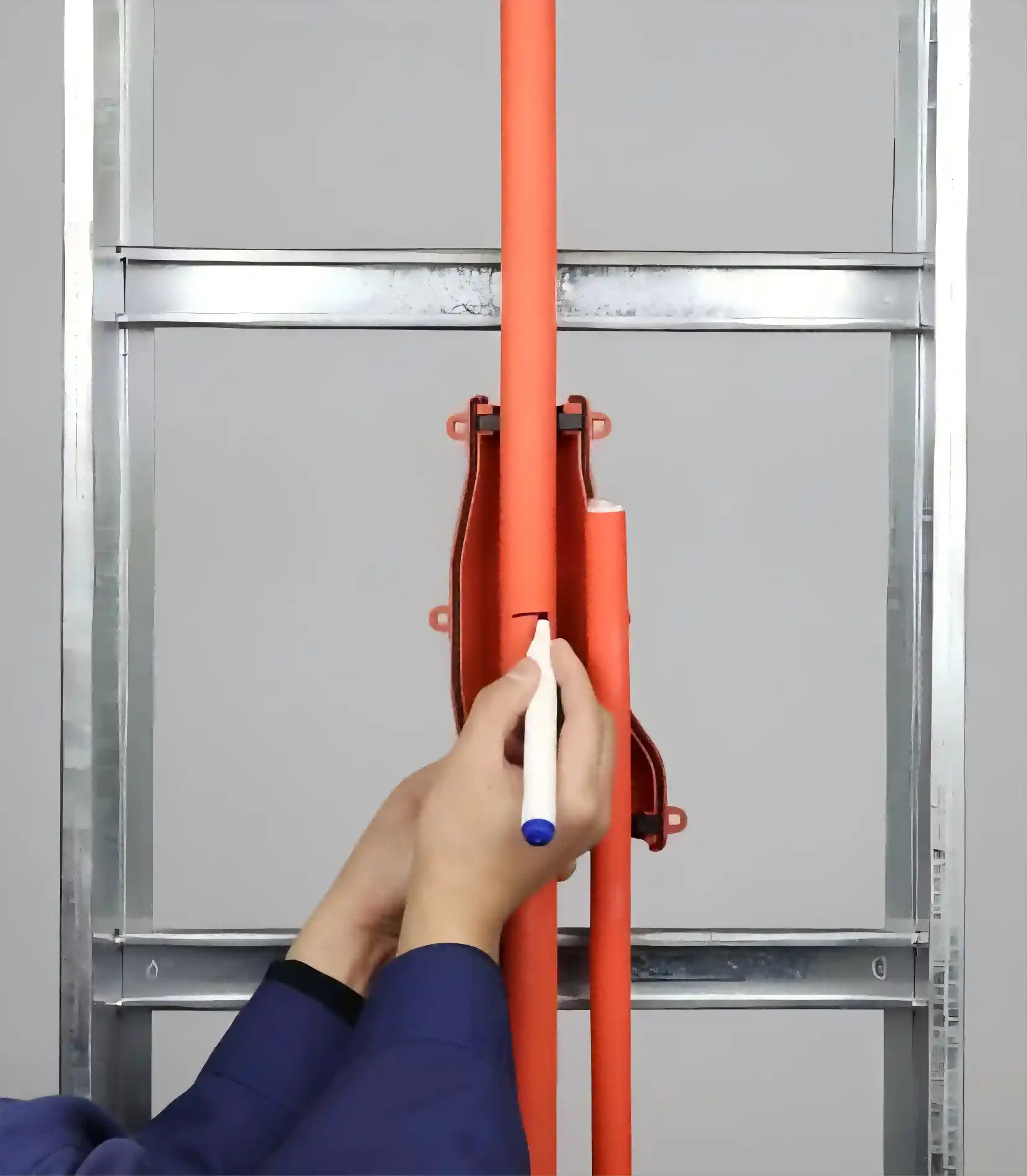

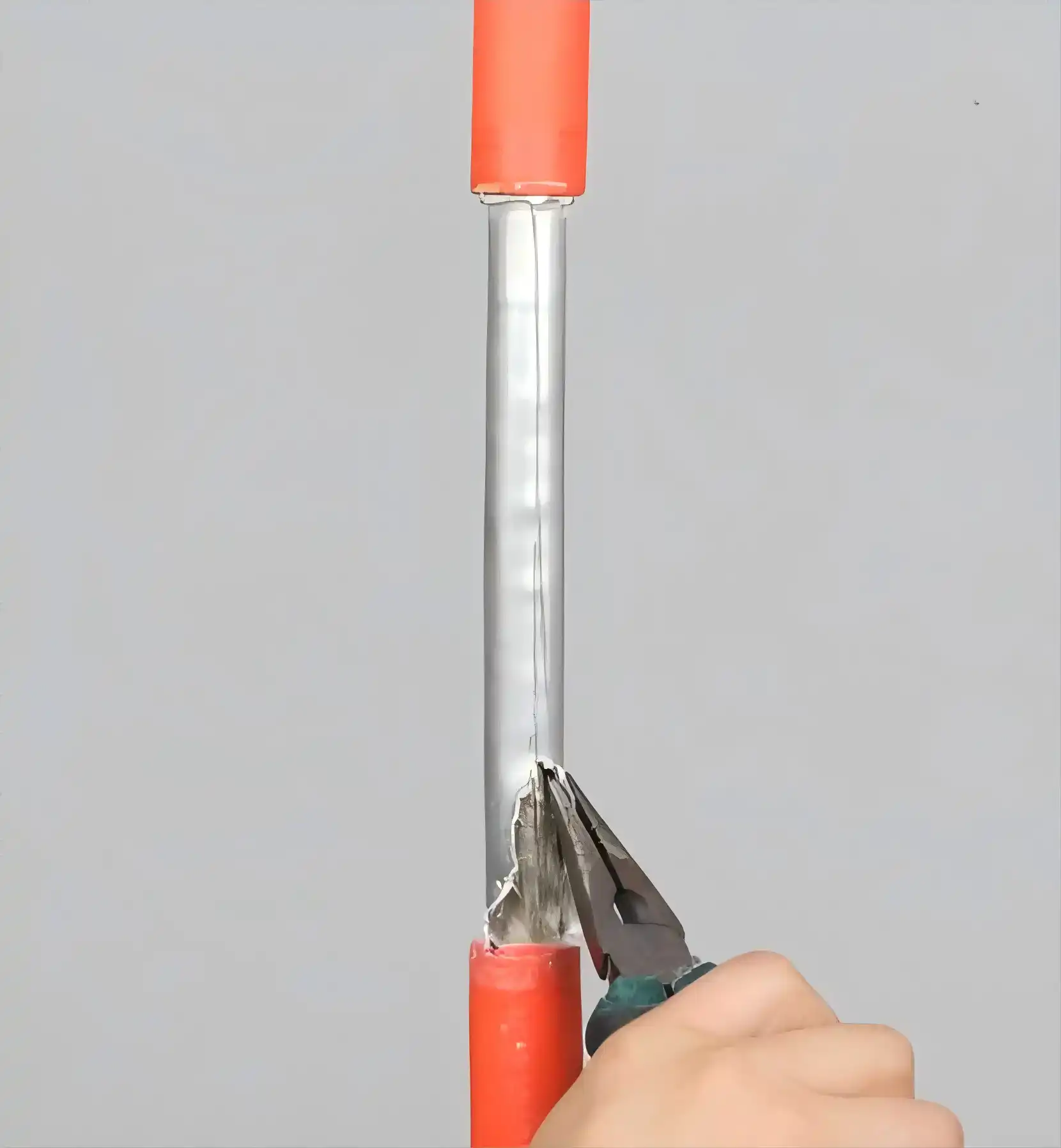

3.Strip the outer sheath and metal layer

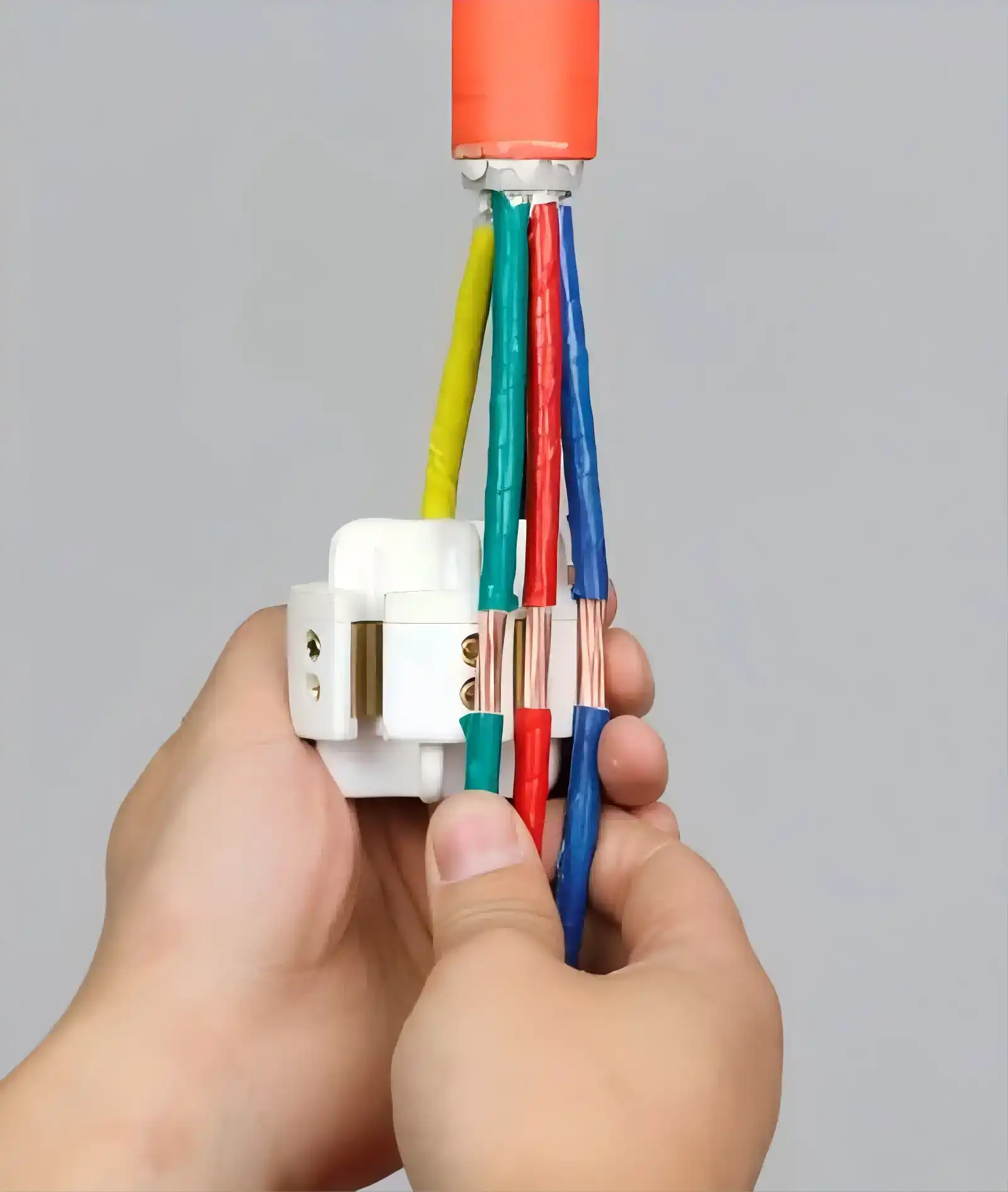

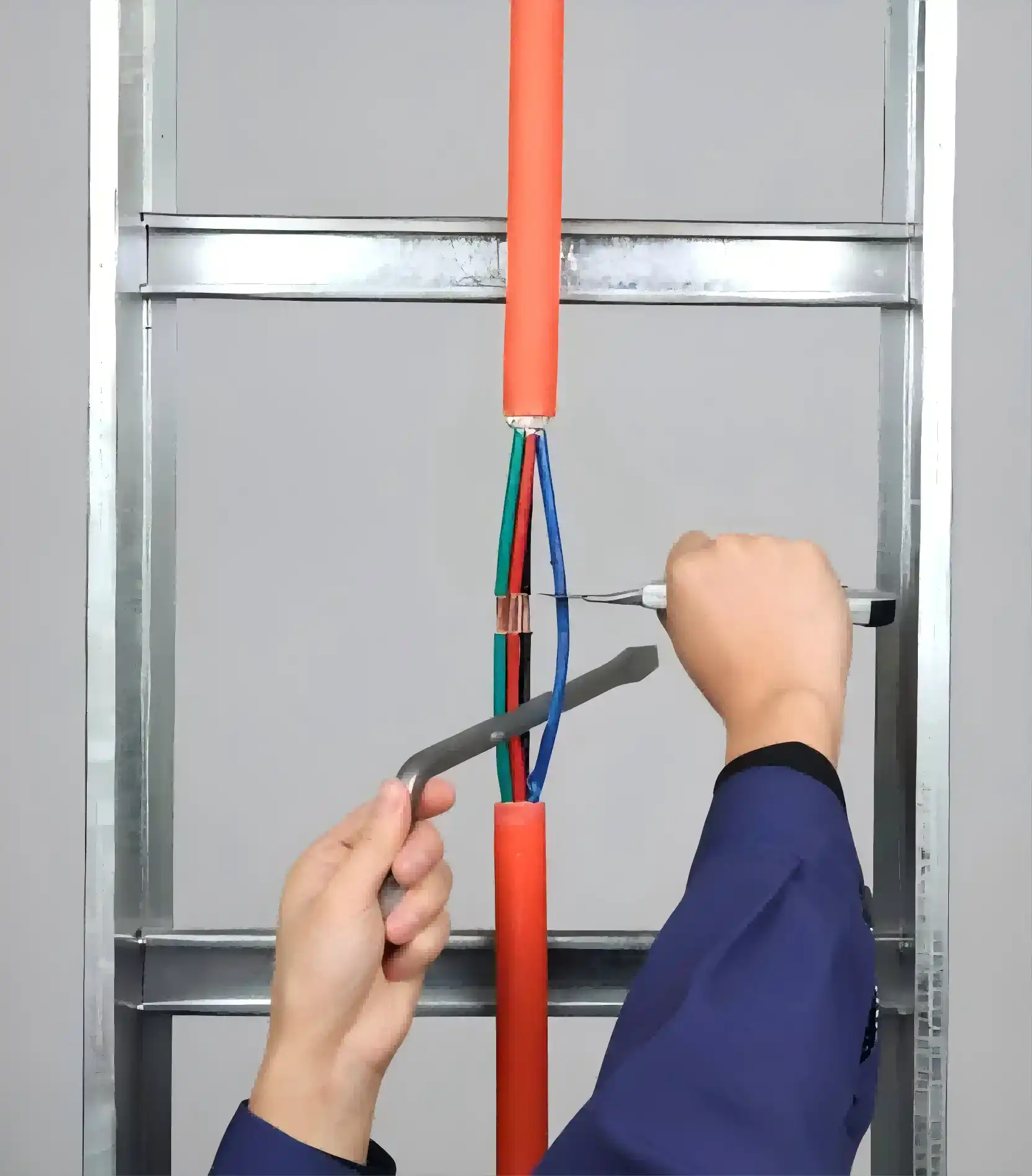

5.Install the branch cable body
7.Wrap insulation refractory adhesive

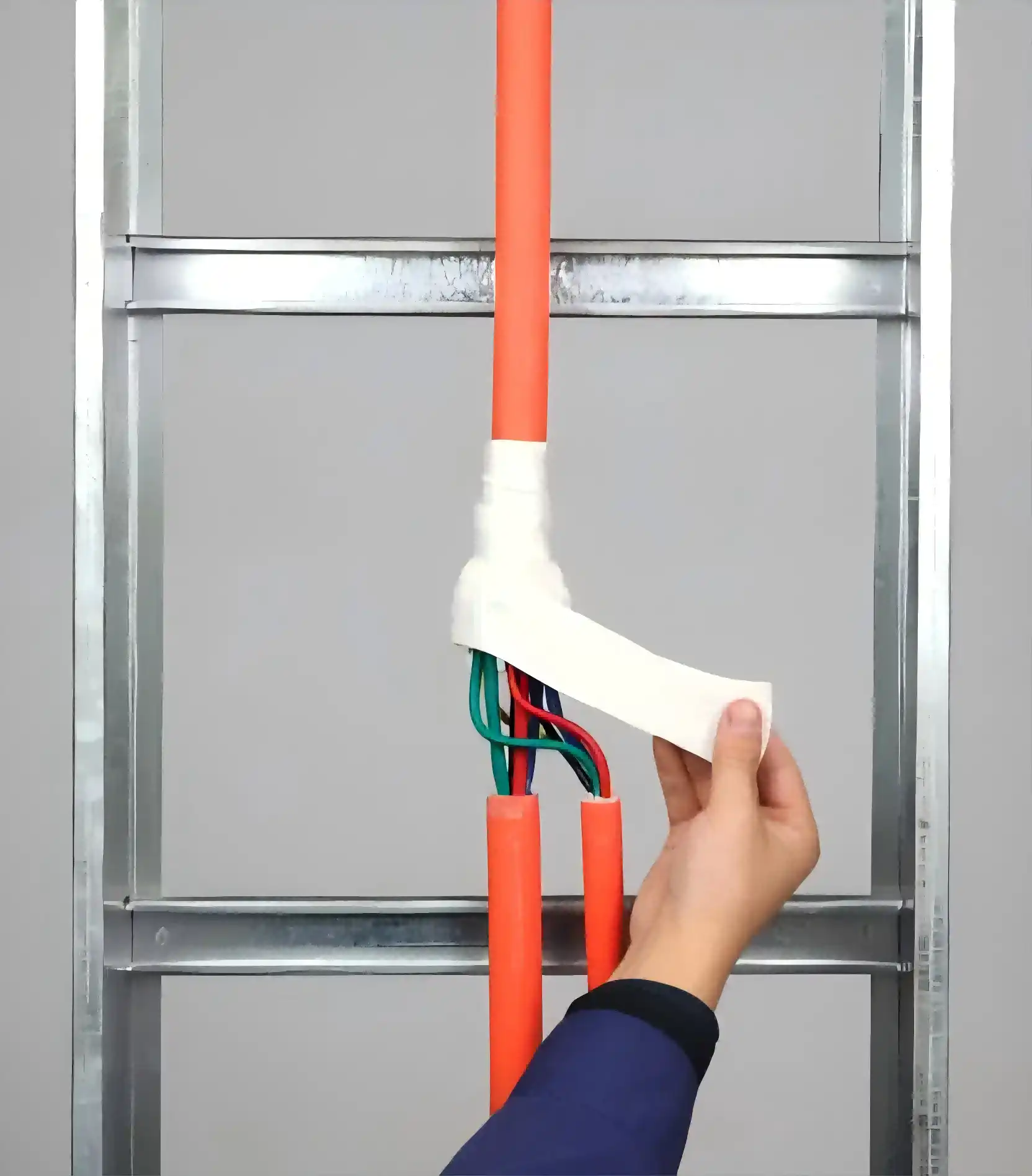

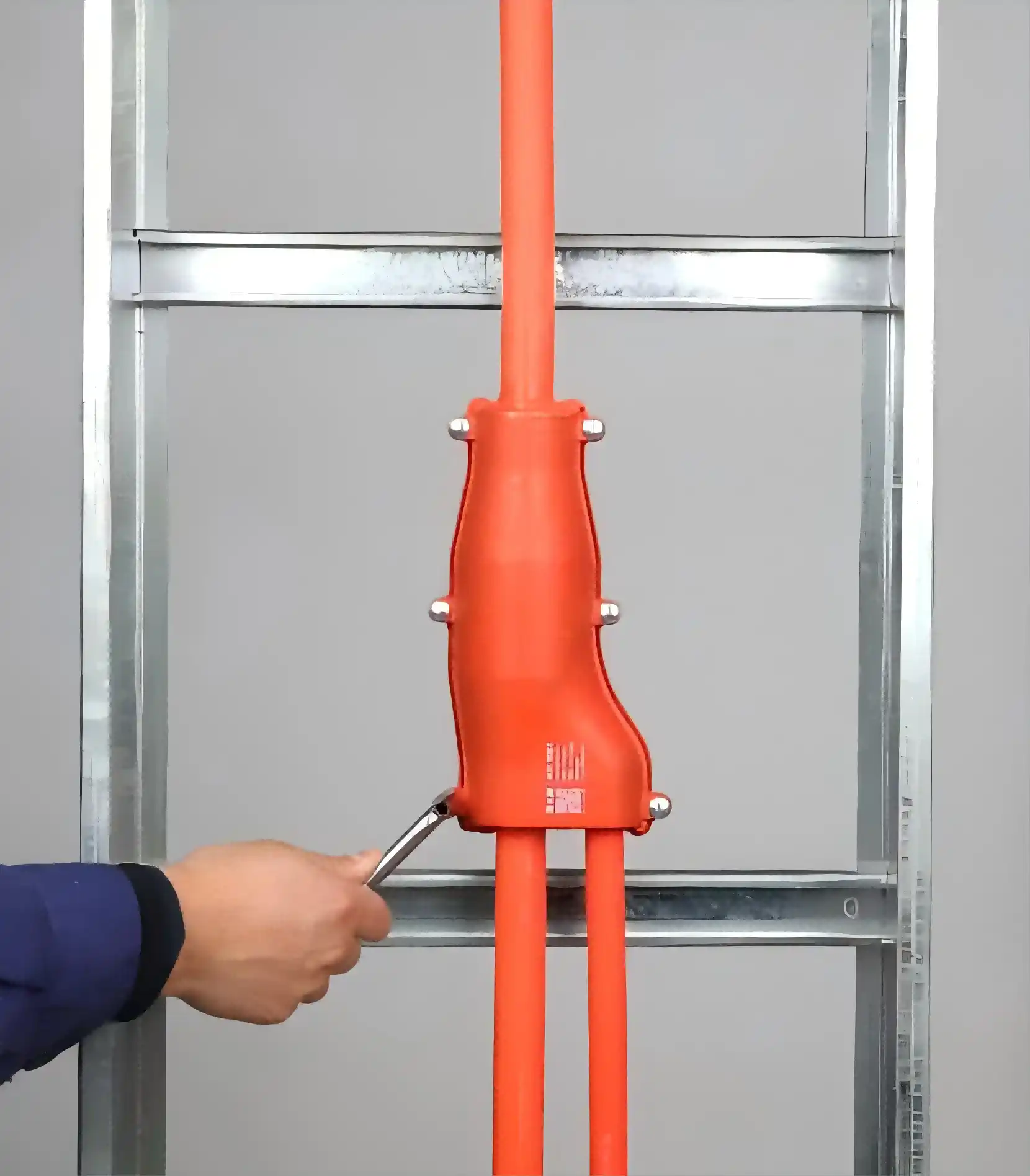

8.Snap-on protective housing

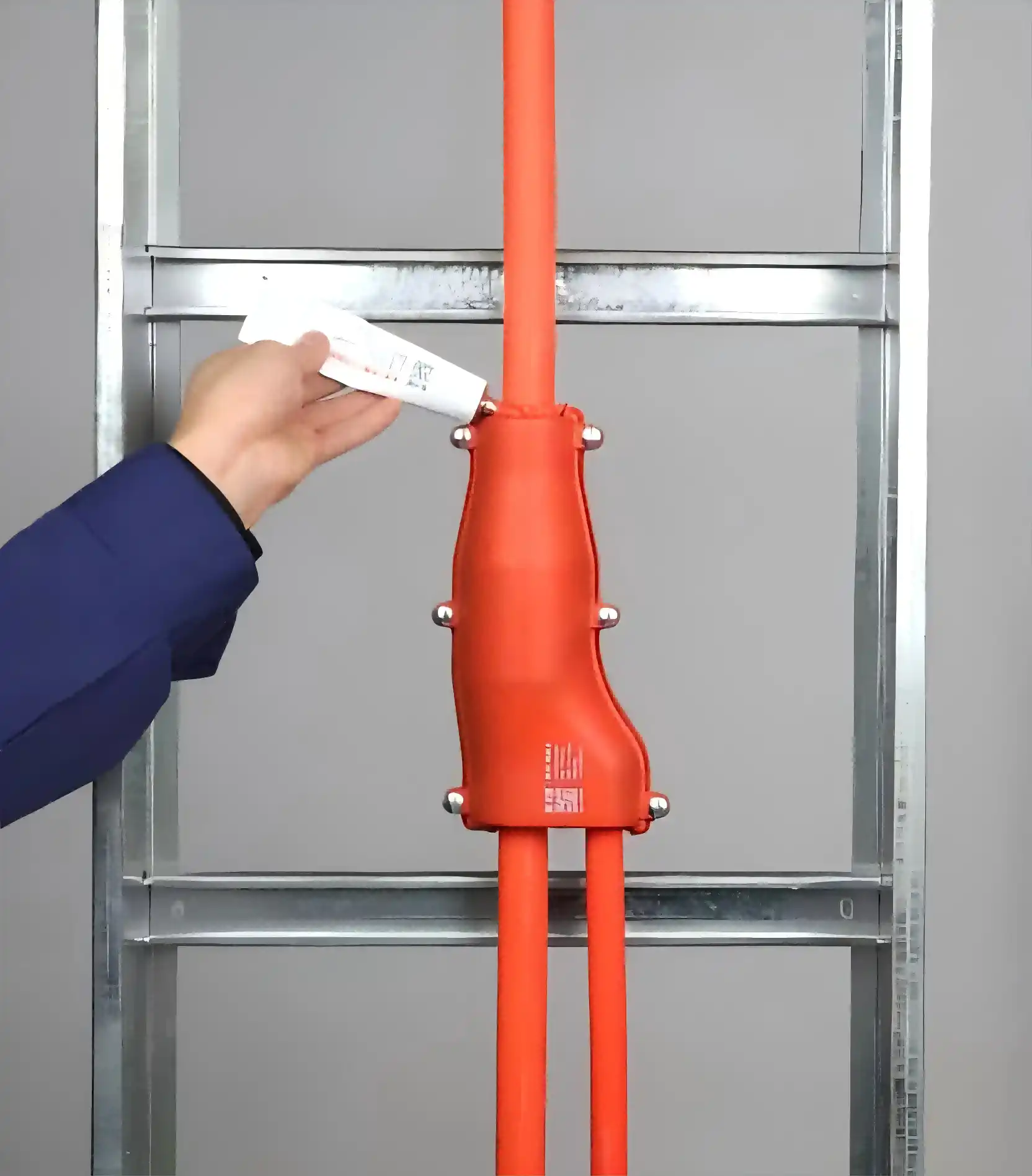

9.Lock and glue the cable outlet
10.Installation completed
Key Responsibilities
Jointing and Termination: They splice and terminate armoured cables to ensure secure electrical connections.
Safety Compliance: They adhere to safety regulations and standards to prevent electrical hazards.
Testing: Perform tests on the completed joints to ensure they are functioning correctly and safely.
Installation Expertise: Provide skills in handling complex installations, including underground and overhead wiring systems.
Armoured Cable Jointer Benefits
Armoured Cable Jointer offers numerous benefits, including:
On-site installation and construction, allowing for branch connection at any position
Integrated, safe, reliable, beautiful, and generous design
Compact structure and small size, suitable for open or bridge installations
Convenient construction and maintenance, with reusable components
Insulation, flame retardant, fire-resistant, dustproof, and waterproof, with anti-aging and anti-electrochemical corrosion properties
Cost-effective, saving cables, building area, labor, and overall cost
Our Certificates
Technical Parameters
The Armoured Cable Jointer is designed to meet the highest technical standards, with features such as:
No need to cut off the main cable
Main cable and branch cable connection on the flame-retardant/fire-resistant insulated integrated T-connector body
Technical Features
It boasts several technical features that make it an ideal solution for electrical connections:
Convenient Connection: Connect multi-core main cables and branch cables quickly and safely on-site.
Reliable Insulation: Insulate and seal the branch cable as a whole, ensuring reliable and safe connections.
Compact Design: Compact structure and small size make it suitable for open or bridge installations.
Composition and Classification

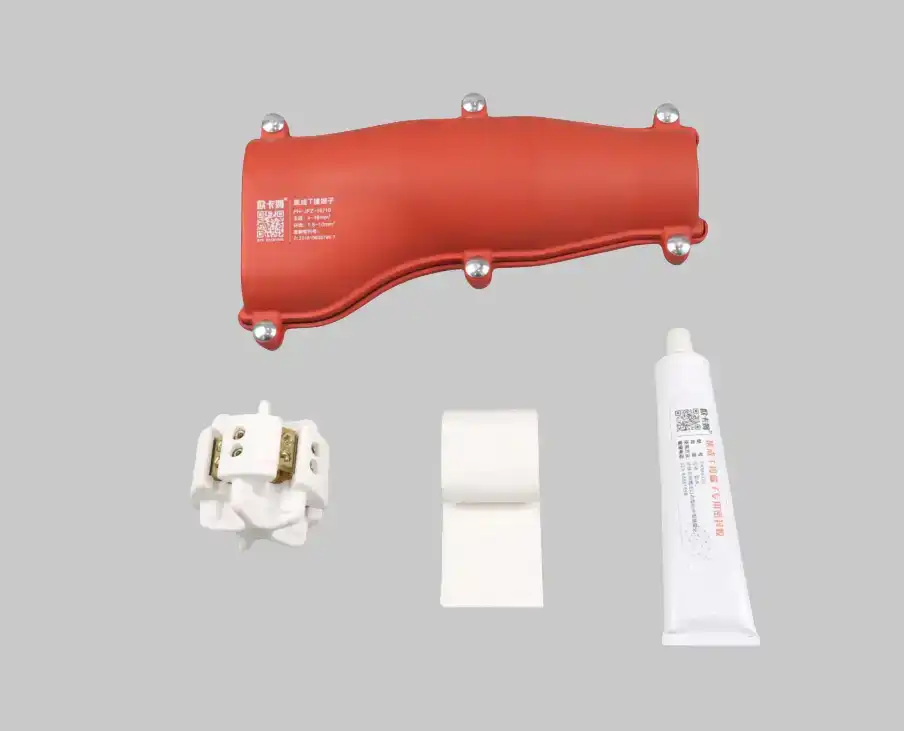

It is composed of:
Integrated T-connector body
Insulation and sealing components
It can be classified into different types based on the cable type, voltage rating, and application.
Our Team
Application Fields
It is widely used in various industries, including:
Power Distribution: Connect and distribute power in industrial, commercial, and residential settings.
Industrial Automation: Connect and control industrial equipment and machinery.
Renewable Energy: Connect and transmit power from renewable energy sources, such as solar and wind power.
Packaging and Transportation
Our product is carefully packaged and transported to ensure safe and secure delivery to our customers. Our packaging materials are designed to protect the product from damage during transportation and storage.
Contact Us
If you have any questions or would like to learn more about the Armoured Cable Jointer, please don't hesitate to contact us at info@okmbranchcable.com. Our team of experts is always ready to assist you with your electrical connection needs.
Conclusion
Our product is a revolutionary product that has transformed the electrical connection industry. With its convenience, speed, and reliability, it has become an essential solution for various industries. At Xi'an OUKAMU, we are committed to providing high-quality products and exceptional customer service. Contact us today to learn more about the Armoured Cable Jointer and how it can benefit your business.
