Underground Cable Branch Joint Connectors
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection

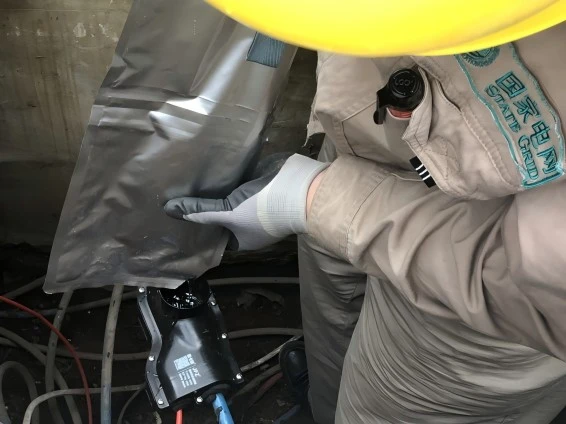

Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Underground Cable Branch Joint Connectors Introduction
At Xi'an OUKAMU, we take pride in our pioneering advancements in cable connection technology. Our Underground Cable Branch Joint Connectors represent a significant leap forward in cable branch connection products, offering unparalleled ease, safety, and reliability. Developed in 2015, our integrated T-connector (integrated brancher) is designed to facilitate the connection of multi-core main and branch cables with minimal disruption, making it an ideal solution for modern infrastructure projects.
Composition of underground cable branch joints

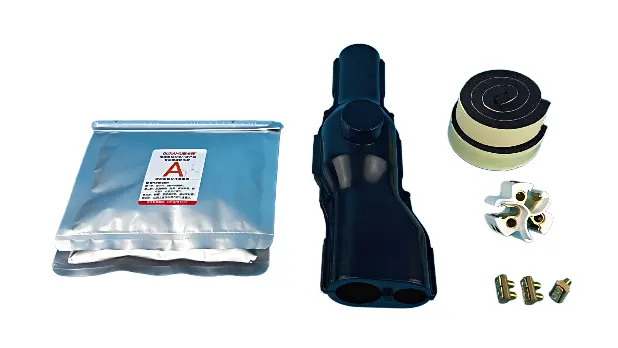

Includes a branch terminal body, insulating housing, sealing tape, and resin adhesive.

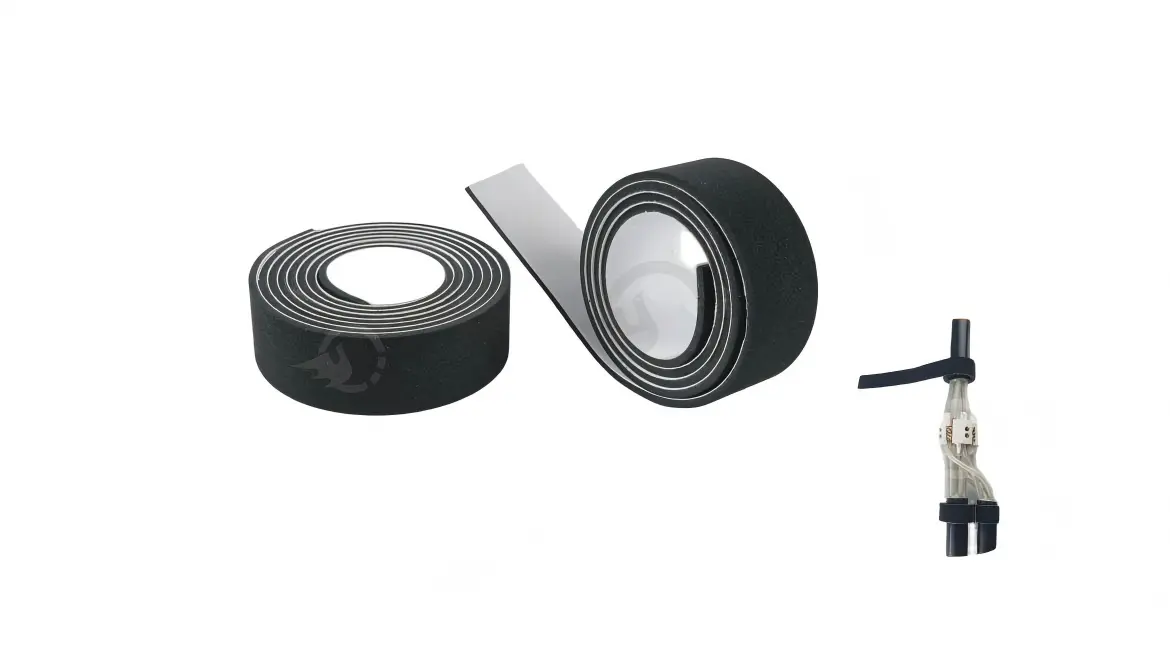

Sealing Tape
Function
Wrapped around the outer sheaths of the main cable and branch cables, it seals the clearances between the cables and the respective feedthrough opening (for the main cable) and branch outlet in the protective enclosure, thereby preventing the ingress of dust and solid particulates into the housing.
Performance & Characteristics
Single-sided adhesive coating (pressure‑sensitive) Elastic material providing flexibility to accommodate minor deformations
Easy and convenient on‑site application Excellent sealing performance, ensuring reliable protection
Flame‑retardant, complying with relevant safety standards for cable accessories
● Dielectric Withstand Voltage Performance
•For IP65‑rated integrated T‑connector terminals: After damp heat conditioning at 91 % to 95 % relative humidity, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.

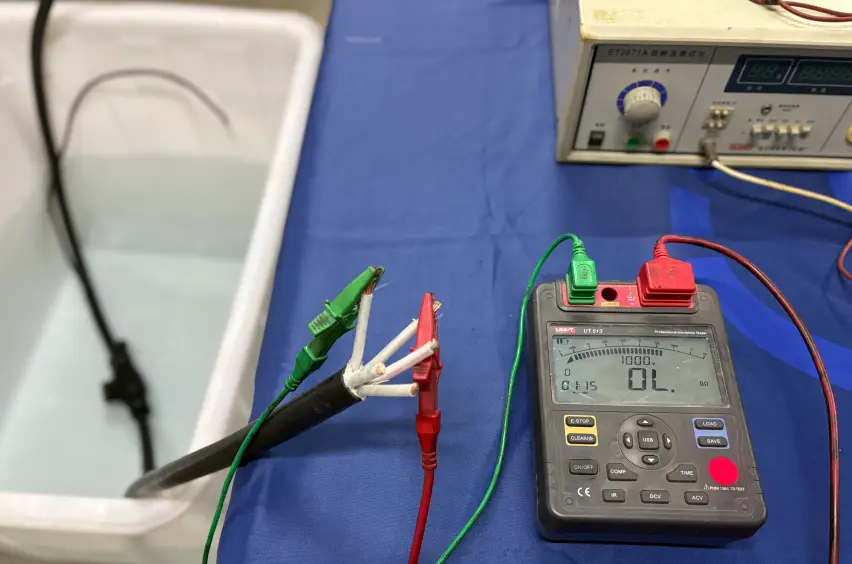

•For IP68‑rated integrated T‑connector terminals: After immersion in water at a depth of 1 m for 1 hour, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.
•Standards Compliance: The products meet all applicable requirements of Q/OKM01‑2018 "Integrated T‑connector terminals (integrated branch devices) with rated voltage 0.6/1 kV".
•Certified Testing: The products have been successfully tested and certified by the National Quality Supervision and Testing Center for Wire and Cable and by Oukamu Electric Co., Ltd., with all tests passed.

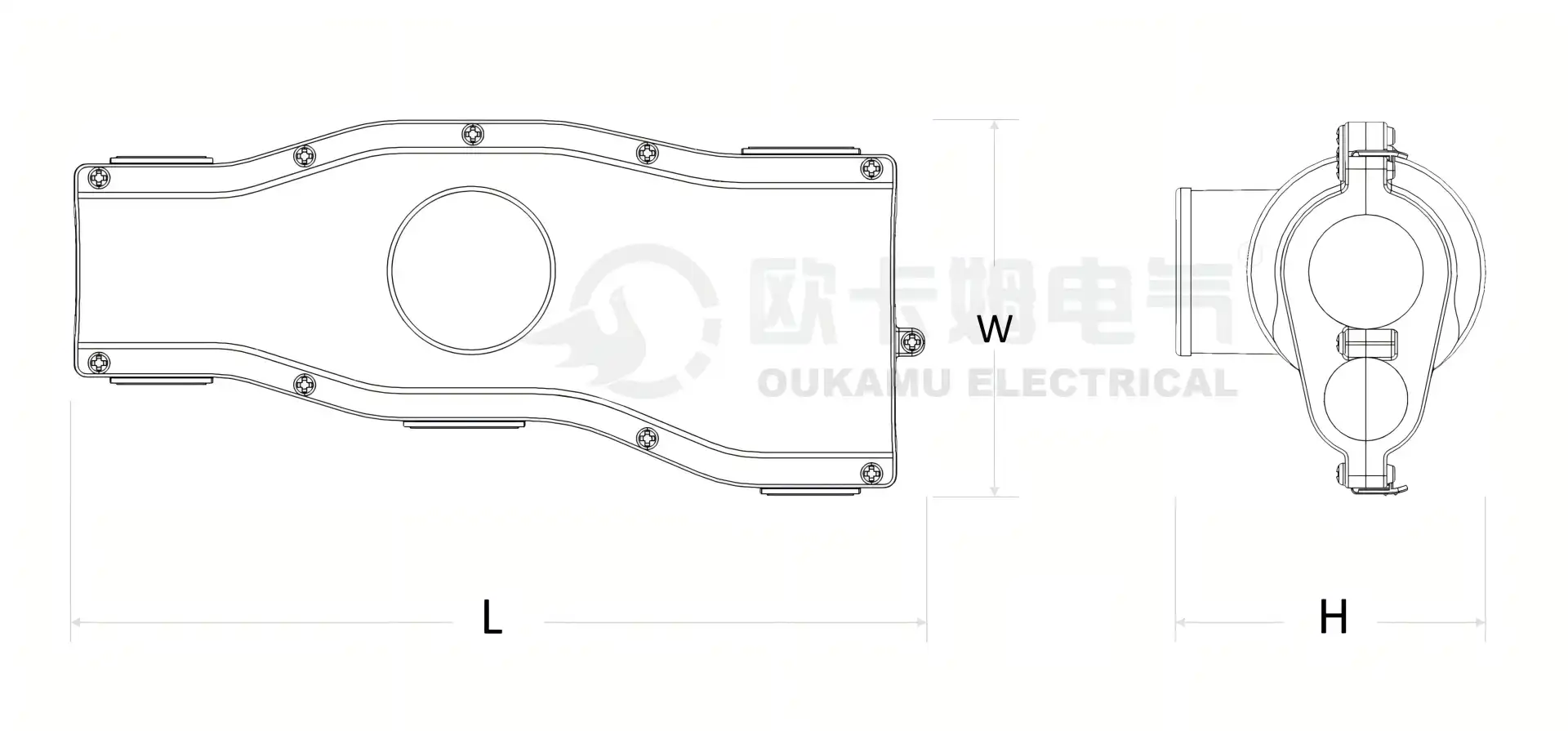

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantages
The Underground Cable Branch Joint Connectors stand out due to their innovative design and user-friendly features:
Ease of Installation: Our connectors are designed for quick and straightforward installation on-site, allowing branch connections at any position without cutting the main cable.
Safety and Reliability: The connectors are integrated, ensuring a secure and durable connection that is both flame retardant, fire-resistant and waterproof.
Space-Saving Design: With a compact structure and small size, these connectors can be installed openly or within cable bridges, optimizing space usage and contributing to a cleaner, more organized installation.
Cost Efficiency: By saving cables, reducing the required building area, and lowering labor costs, our connectors offer a cost-effective solution that does not compromise on quality or performance.
Technical Features
Our Underground Cable Branch Joint Connectors are designed with the following technical features:
Non-Cutting Main Cable Connection: The main cable remains intact, ensuring a strong and continuous connection throughout the installation.
Integrated Insulation: Both the main and branch cables are connected within a waterproof, flame-retardant and fire-resistant insulated T-connector body, providing enhanced safety.
Complete Insulation and Sealing: The branch cable is fully insulated and sealed, protecting the connection from environmental factors and ensuring long-lasting performance.
R&D Center
At Xi'an OUKAMU, our commitment to innovation is driven by our state-of-the-art R&D Center.
Our dedication to research and development has led to the creation of our patented cable integrated T-connection terminal, a world-first in the industry. We are proud to hold an exclusive market share for this groundbreaking technology, and our R&D efforts continue to focus on developing even more advanced solutions for cable connection needs.Product Application
The Underground Cable Branch Joint Connectors are designed for a wide range of applications, including:
Low-Voltage Cable Branching: Ideal for connecting low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Infrastructure Projects: Suitable for use in urban development, industrial installations, and any project requiring reliable underground cable connections.
Maintenance and Upgrades: These connectors are perfect for both new installations and upgrading existing infrastructure, thanks to their ease of use and compatibility with various cable types.
Quality Control
Quality is at the heart of everything we do at Xi'an OUKAMU. Our Underground Cable Branch Joint Connectors undergo rigorous testing and quality control procedures to ensure they meet the highest standards.
Every step of the production process, from selecting raw materials to inspecting finished goods, is monitored to ensure that our customers receive only the best.
Our obligation to quality is reflected in the solidness and dependability of our items, which are intended to endure the hardest circumstances and convey extraordinary execution for quite a long time into the future.
FAQ
Q1: Can the connectors be reused after disassembly?
Yes, our connectors are designed for easy disassembly and reassembly, making them reusable for future projects.
Q2: Are the connectors suitable for outdoor installations?
Our connectors are ideal for outdoor use because they are dustproof, waterproof, and resistant to environmental degradation.
Q3: What types of cables can be used with these connectors?
These connectors are compatible with waterproof, low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q4: How does the connector ensure a secure connection?
The T-connectors securely connects the main and branch conductors together, providing a stable and reliable connection.
Q5: What is the typical lifespan of these connectors?
With proper installation and maintenance, our connectors can last for several decades, offering a long-term solution for cable branching needs.
