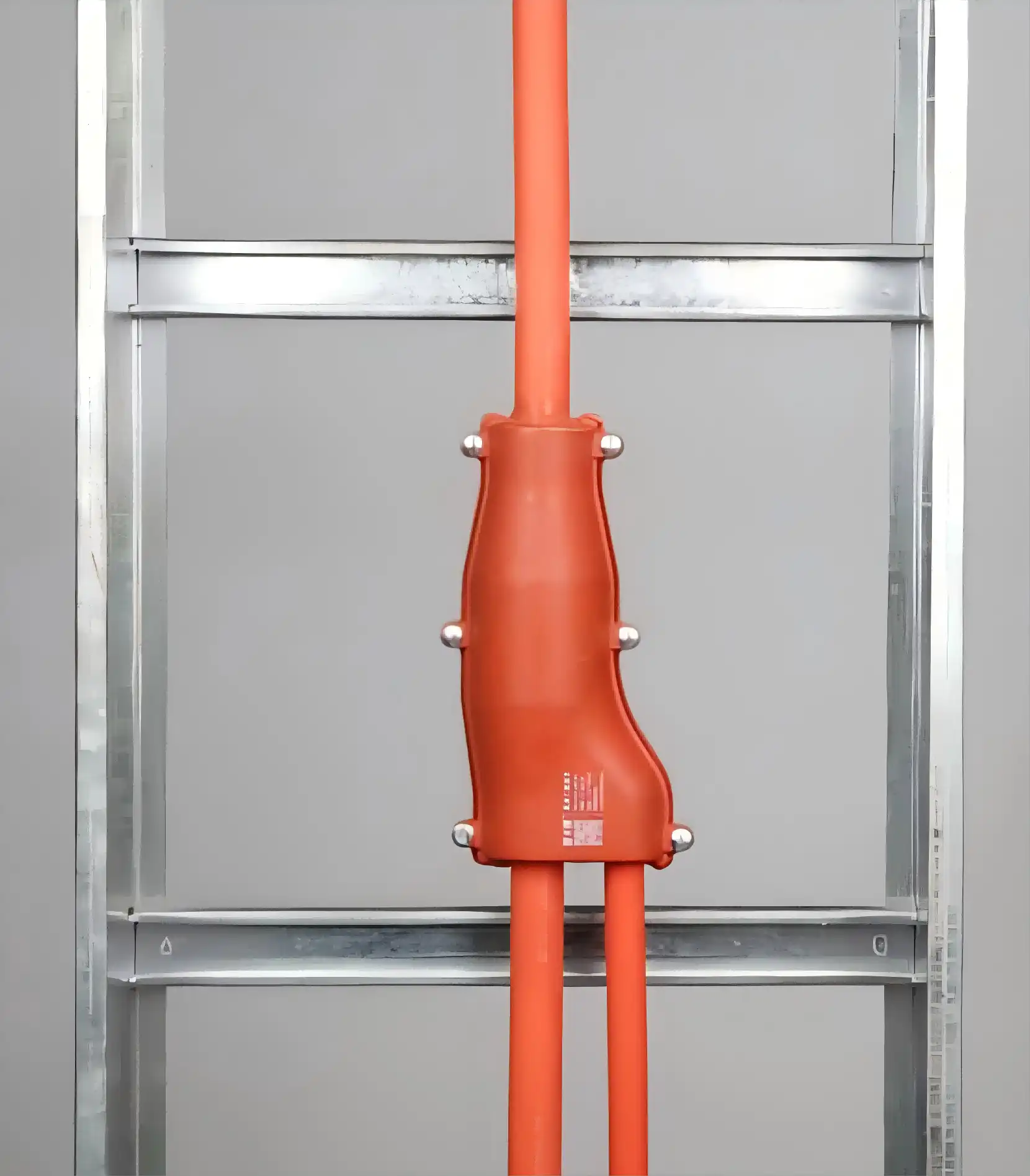

Armoured Cable Joint Kit
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres ofmain cable, labour costs and time
Low overall cost, high cost performance
Armoured Cable Joint Kit Introduction
The most cutting-edge cable connection technology currently available is the Armoured Cable Joint Kit from Xi'an OUKAMU. This kit's goal is to provide secure, dependable, and effective armored cable connections for a wide range of applications. It was made with precision and is reliable.
This kit ensures that your connections are secure and pleasing to the eye, regardless of whether you are working with cables that are resistant to fire or flame retardant at low voltage.
Our patented integrated T-connector technology simplifies the installation process, increases overall safety, and lowers labor and time costs.

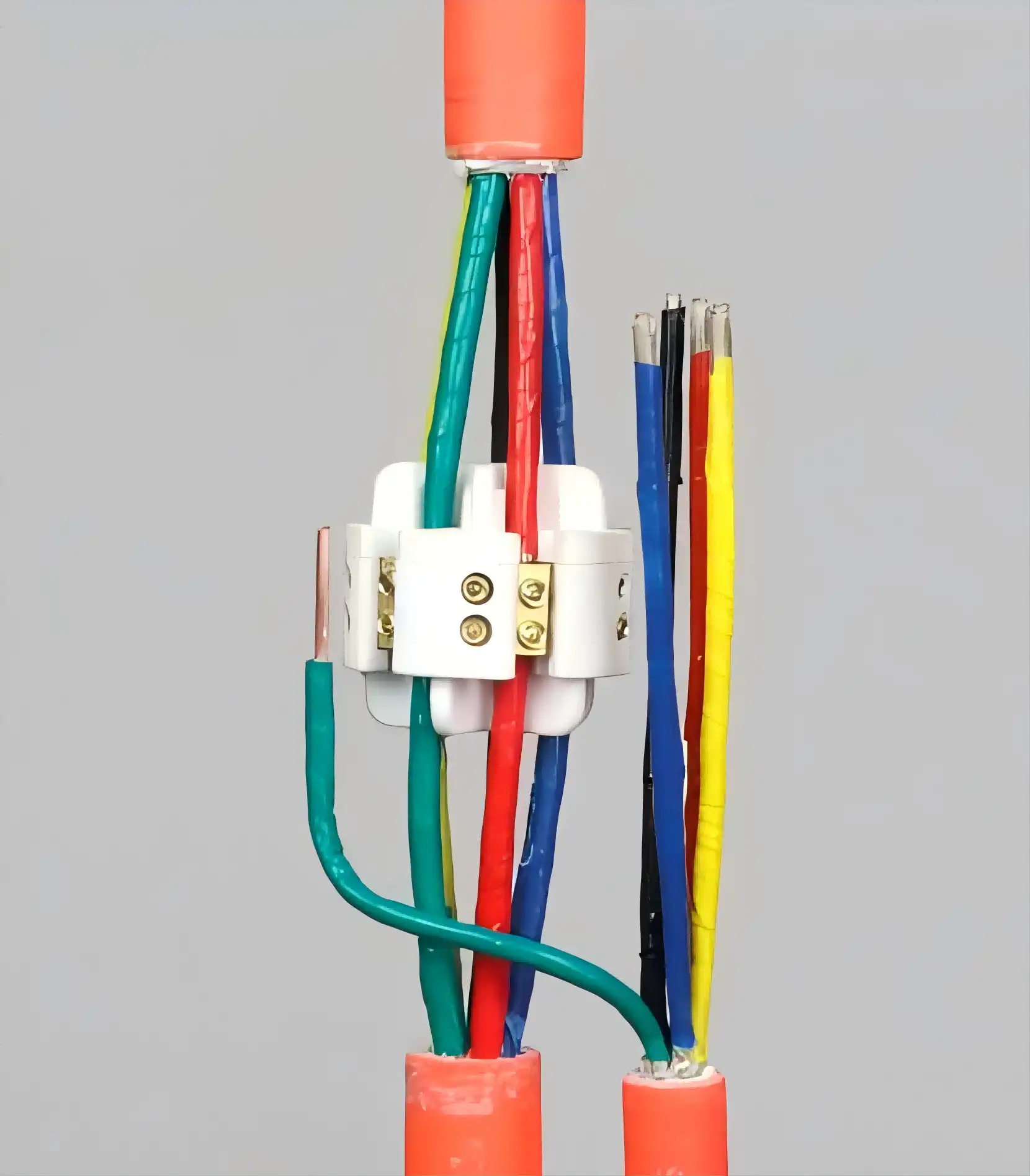

Integrated T-Terminal Block
Flame-Retardant Type: Designed for T-junctions of flame-retardant cables, injection-moulded from high-quality reinforced, flame-retardant, and high-temperature-resistant engineering plastic insulation.
Fire-Resistant Type: Designed for T-junctions of fire-resistant (including mineral-insulated fire-resistant) cables, fabricated from fired mineral insulating refractory materials, capable of withstanding temperatures in excess of 1500°C.

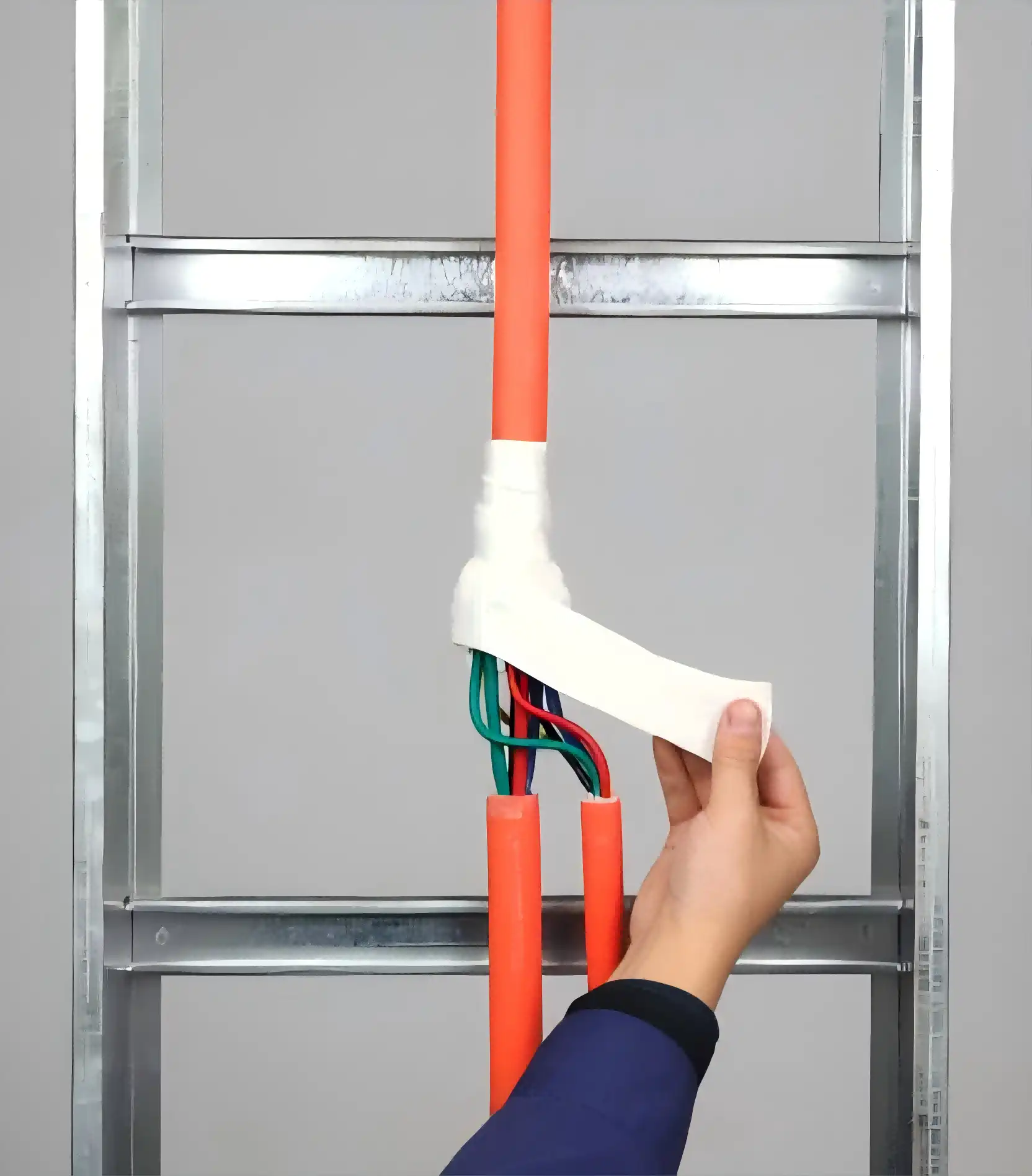

Sealing Tape
Function:Wrapped around the outer sheaths of the main cable and branch cables, it seals the clearances between the cables and the respective feedthrough opening (for the main cable) and branch outlet in the protective enclosure, thereby preventing the ingress of dust and solid particulates into the housing.
Performance & Characteristics:Single-sided adhesive coating (pressure‑sensitive) Elastic material providing flexibility to accommodate minor deformations
Easy and convenient on‑site application Excellent sealing performance, ensuring reliable protection
Flame‑retardant, complying with relevant safety standards for cable accessories
●Product Performance
Fire Resistance Performance:
•Circuit Integrity C: After being subjected to fire (950°C–1000°C) for 180 minutes, the circuit remains intact.
•Circuit Integrity W: After being subjected to fire (650°C–700°C) for 15 minutes, followed by water spray and continued fire exposure for another 15 minutes, the circuit remains intact.
•Circuit Integrity Z: After being subjected to fire (950°C–1000°C) and mechanical vibration for 15 minutes, the circuit remains intact.
•Protection Rating: IP65 (prevents ingress of foreign objects, dust, rain, and jet water; suitable for non-immersion applications).
•Insulation Resistance: At 90% humidity, test voltage 1kV, phase-to-phase insulation resistance > 10,000MΩ.
•Withstand Voltage: At 90% humidity, applied voltage 3.5kV for 5 minutes, no phase-to-phase breakdown.
Complies with the requirements of BS6387:2013 "Test method for resistance to fire of cables required to maintain circuit integrity under fire conditions" and Q/OKM01-2018 "Integrated branch devices with rated voltage 0.6/1kV" for circuit integrity, conductor continuity, thermal cycling tests, and other standard requirements.
Certified and tested qualified by the National Engineering Laboratory for High-Speed Railway Construction Technology, the National Center for Quality Supervision and Testing of Fire Building Materials, the National Quality Supervision and Testing Center for Wire and Cable, and Oukamu Electric Co., Ltd.

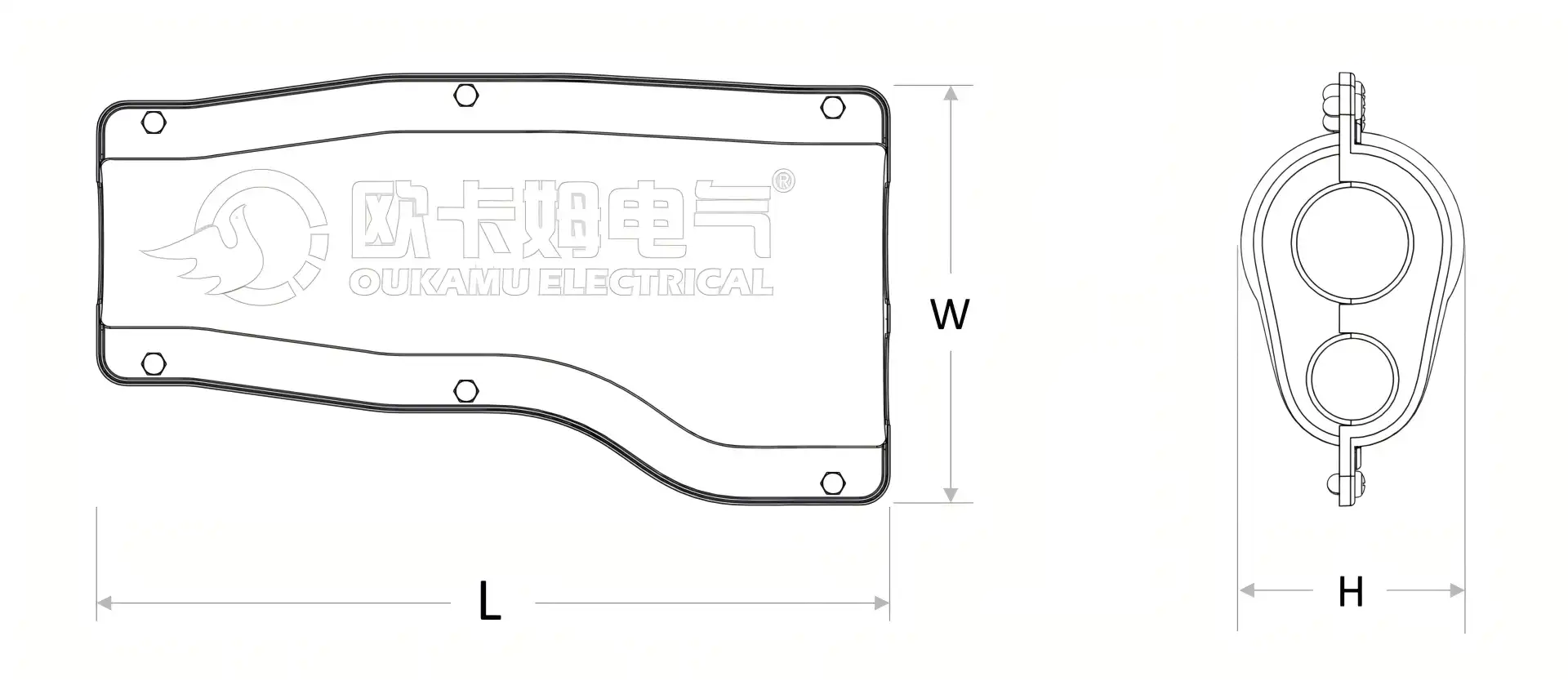

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm)
|
|
|
Copper Core |
|||||
|
FH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
210*140*65 |
|
FH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*160*80 |
|
FH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
415*170*85 |
|
FH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*190*105 |
|
NH-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
220*110*65 |
|
NH-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
300*125*85 |
|
NH-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
360*135*90 |
|
NH-JFZ-50/35 |
16~50 |
2.5~35 |
0.6/1 |
150 |
415*185*100 |

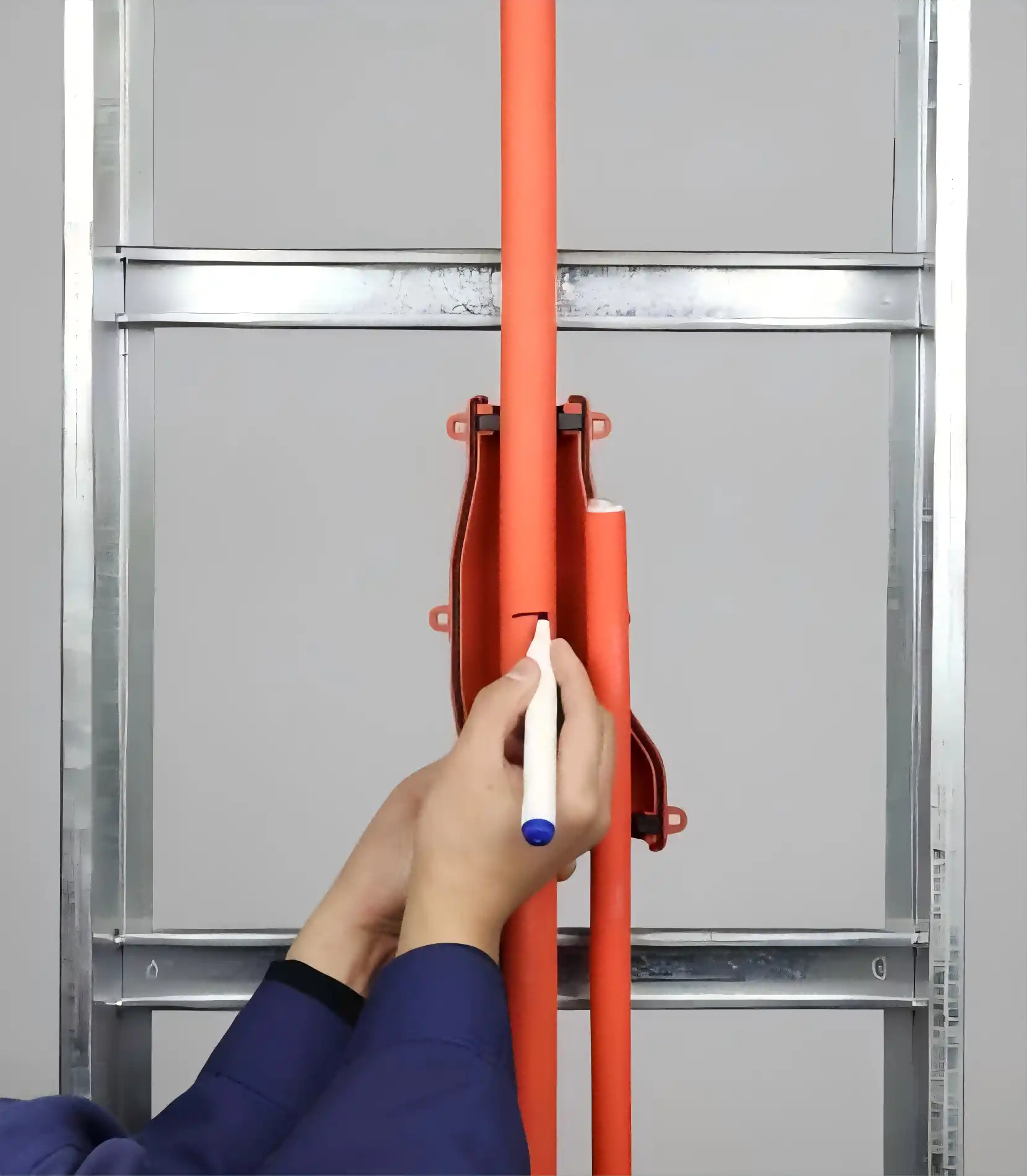

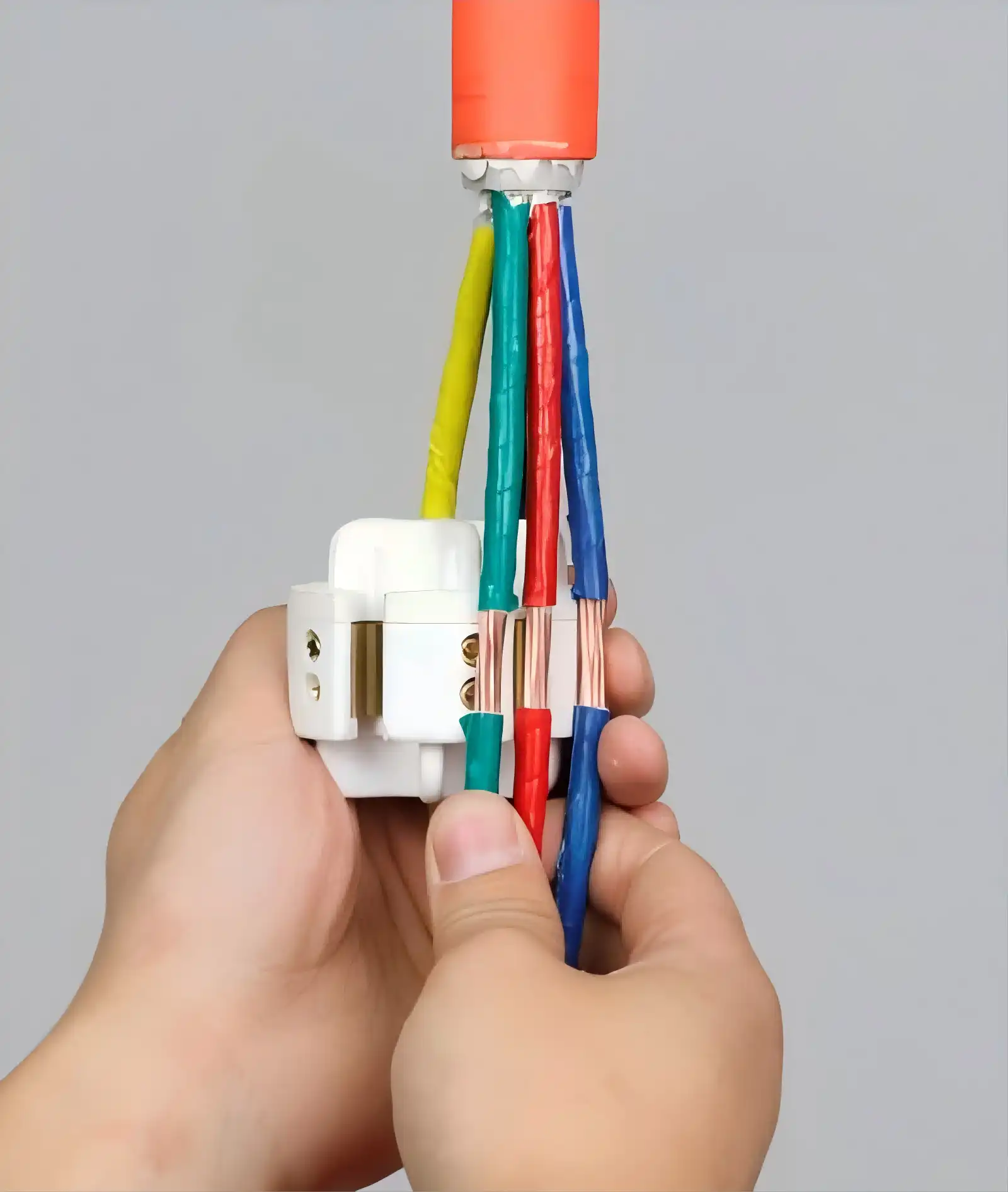

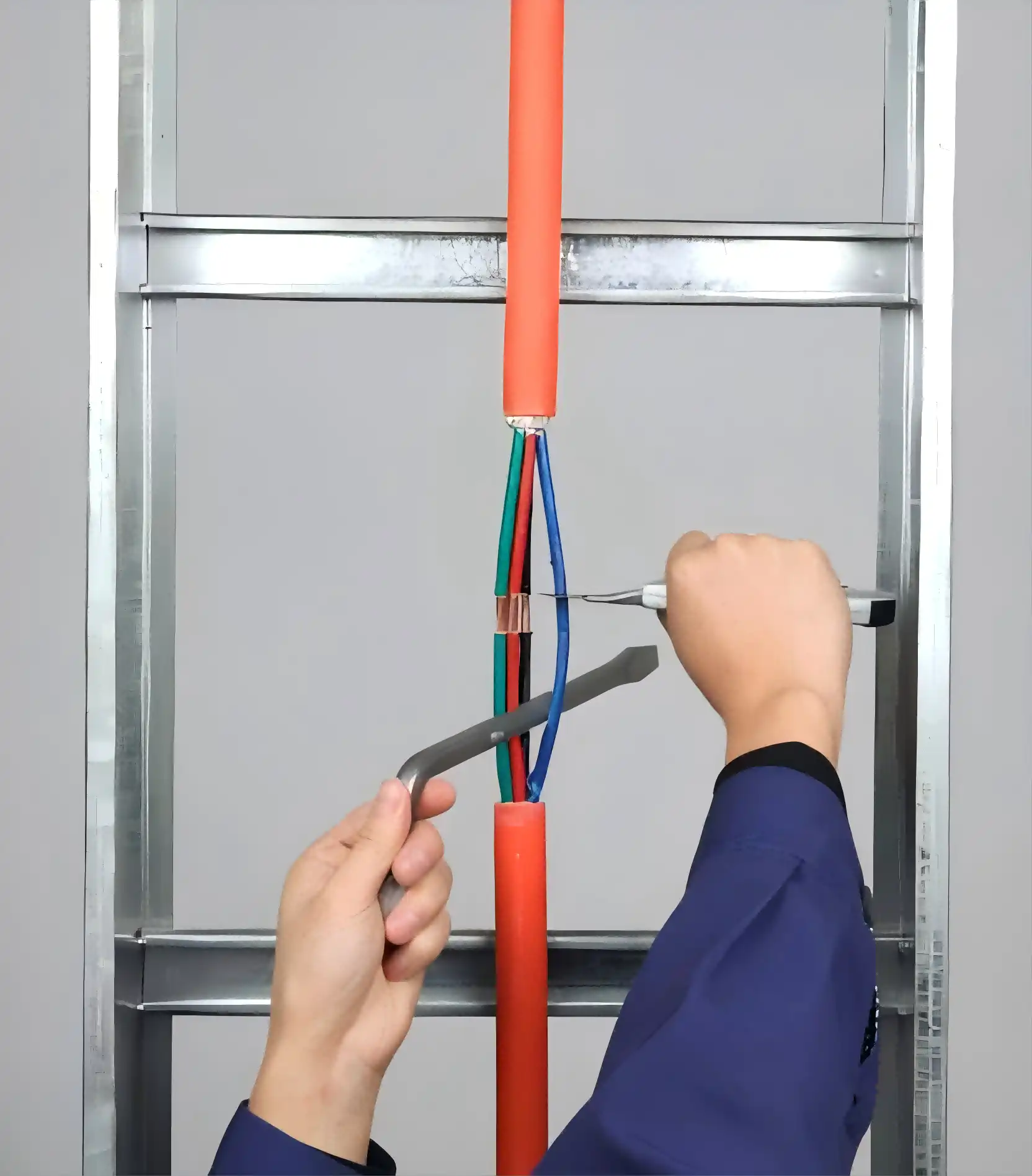

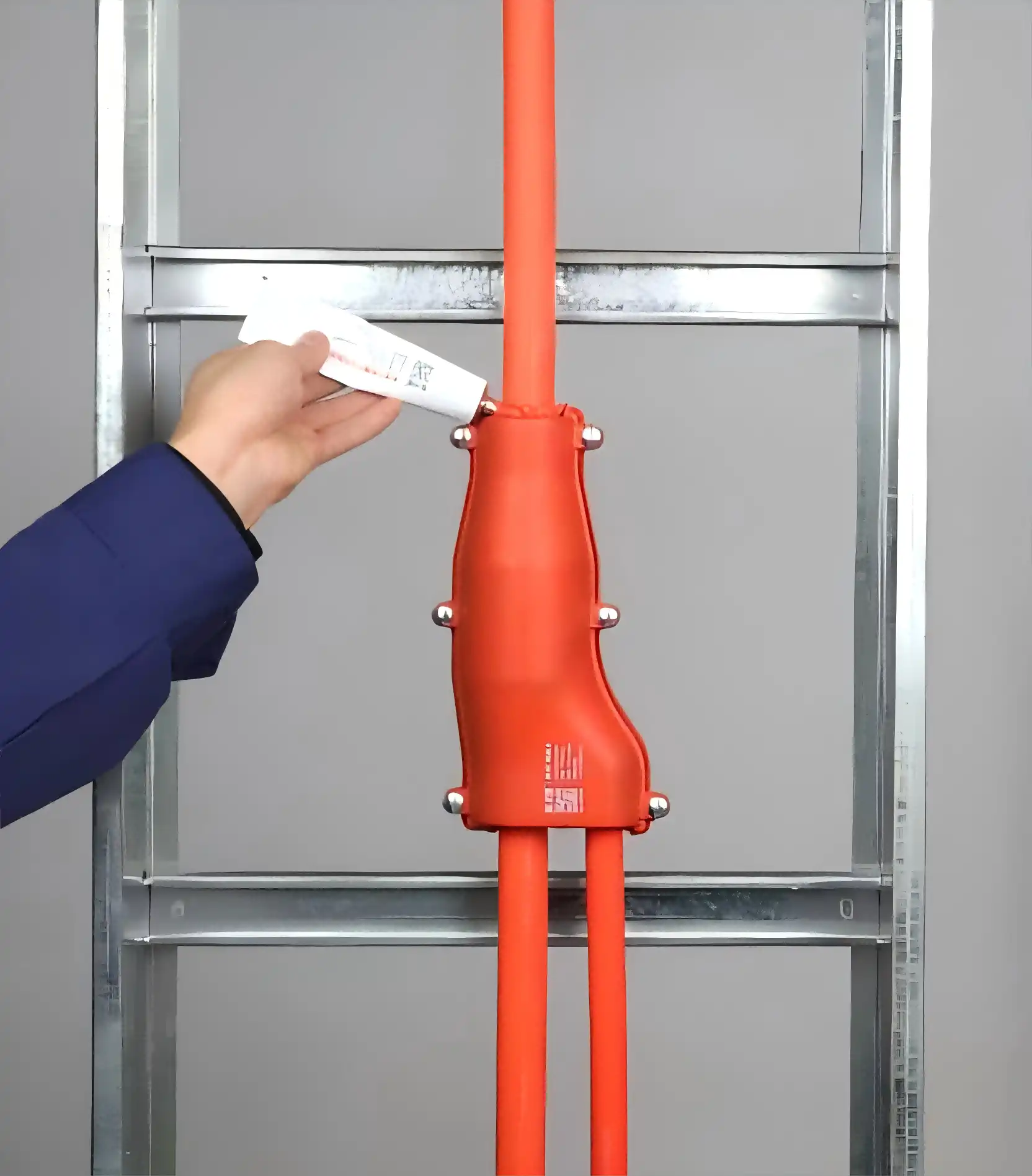

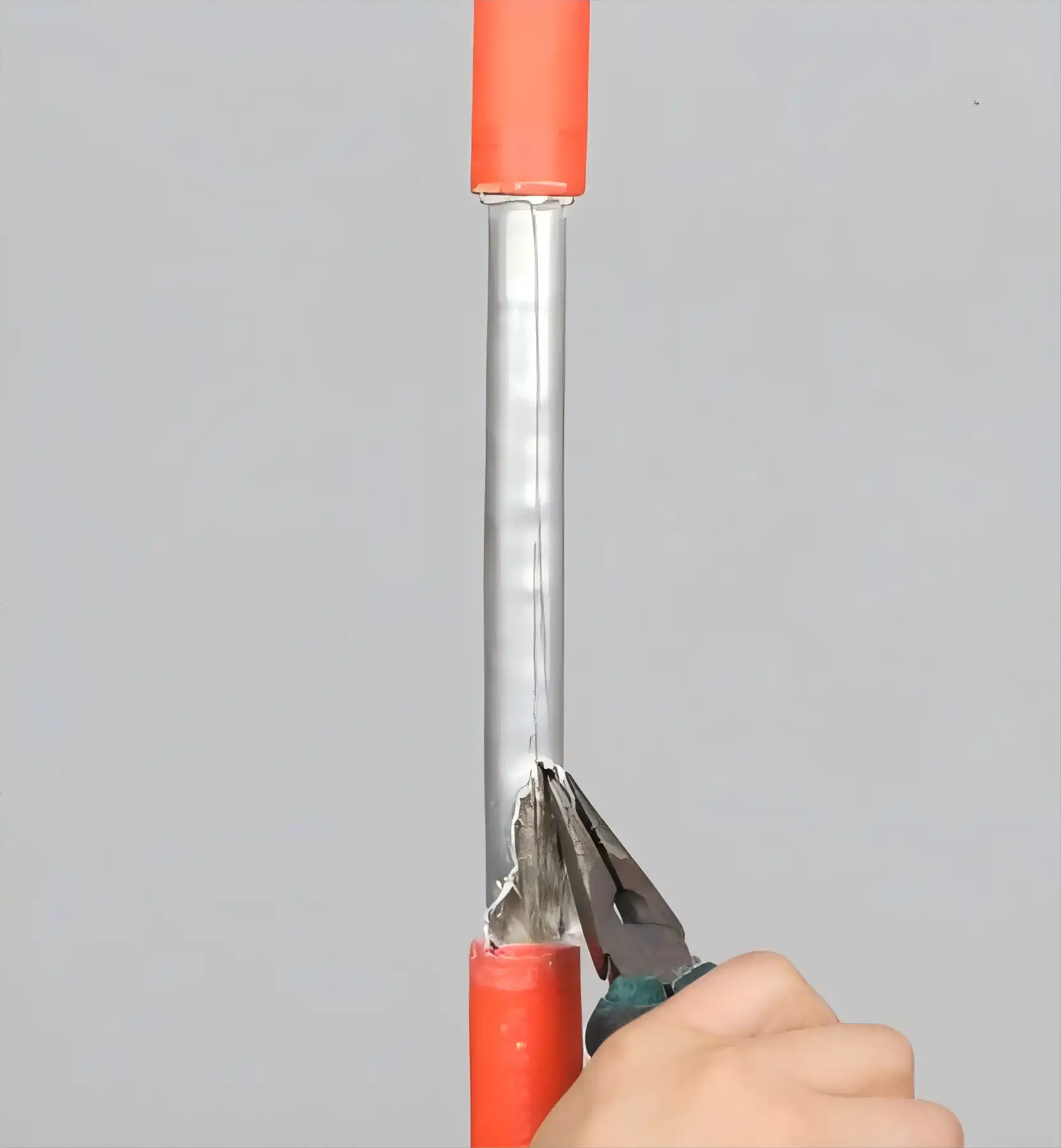

Installation Steps
Technical Parameters
Understanding the technical specifications of our product is crucial for ensuring it meets your specific needs. Below are the key parameters:
- Voltage Rating: 0.6/1kV
- Fire-resistant Temperature: 750~1000℃
- Withstand Voltage: 3.5kV
- Voltage Drop: <3.2mV
- Insulation Resistance: >500MΩ
- Cable Compatibility: Suitable for low-voltage flame-retardant, fire-resistant, and mineral-insulated cables
These parameters ensure that the product is versatile enough to be used in a wide range of applications, providing robust performance even in challenging environments.
Technical Features
The Armoured Cable Joint Kit is not just another cable connection product; it is engineered with features that set it apart in the market:
- Non-Cutting Main Cable: Unlike traditional methods, our kit allows you to connect branch cables without cutting the main cable, preserving its integrity and strength.
- Integrated Connection: The branch and main cables are connected directly on the flame-retardant, fire-resistant insulated T-connector body, ensuring a seamless and secure connection.
- Insulated and Sealed: The branch cable is fully insulated and sealed, offering protection against environmental factors such as moisture, dust, and corrosion.
Composition and Classification

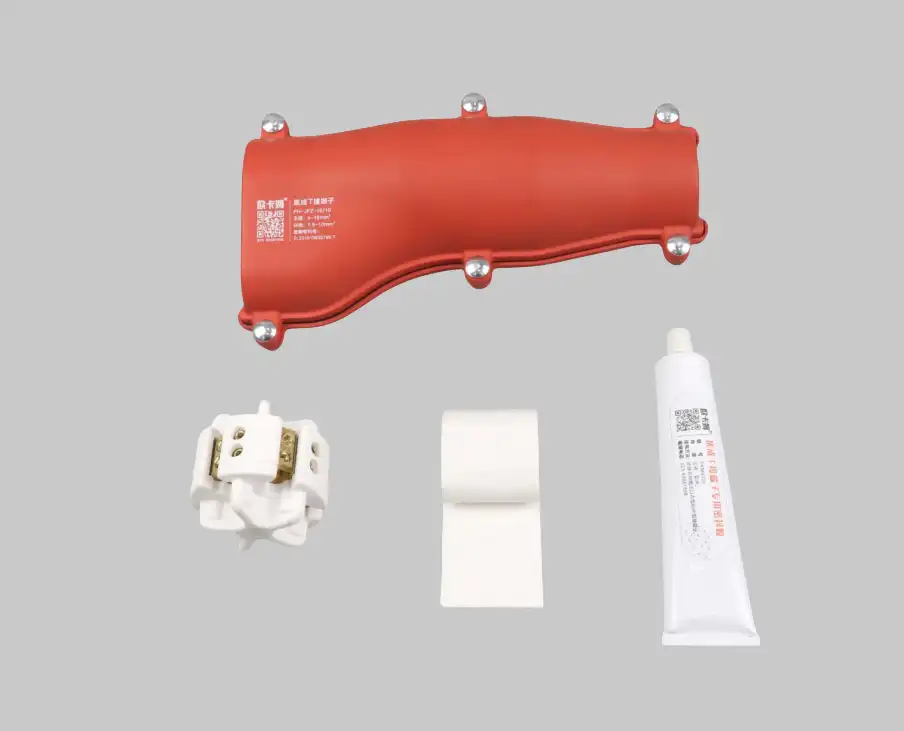

The Armoured Cable Joint Kit is composed of several key components that work together to ensure a flawless connection:
- T-Connector Body: Made from high-quality flame-retardant and fire-resistant materials, this is the core of the kit.
- Insulation and Sealing Materials: Provides additional protection and extends the lifespan of the connection.
- Mounting Accessories: Includes screws, bolts, and other necessary components for secure installation.
Application
The versatility of the Armoured Cable Joint Kit makes it ideal for a wide range of applications:
- Industrial Plants: Secure connections for low-voltage power distribution.
- Commercial Buildings: Fire-resistant connections for enhanced safety.
- Infrastructure Projects: Durable and reliable connections for long-term projects.
- Marine and Offshore: Resistant to harsh environments, ensuring reliable connections in challenging conditions.
Whether you're working on a new installation or upgrading an existing one, our kit is designed to meet the demands of various industries and applications.
Packaging and Transportation
We know that the item's trustworthiness can't be compromised without appropriate bundling and transportation. To ensure that each unit contacts you in wonderful condition, it is carefully pressed in solid, shock-safe, and dampness safe bundling.
Whether you are getting a solitary unit or an enormous request, our bundling is intended to be easy to deal with. To meet your calculated necessities, we give versatile delivery choices that incorporate air, ocean, and land transport.
Contact Us
For more information about the Armoured Cable Joint Kit or to place an order, please reach out to us at info@okmbranchcable.com.
To ensure that you select the appropriate product for your requirements, our team of experts is prepared to answer any questions you may have.
We at Xi'an OUKAMU are dedicated to providing products of the highest quality that meet the strictest safety and dependability requirements. We are eager to assist you with your cable connection requirements.
